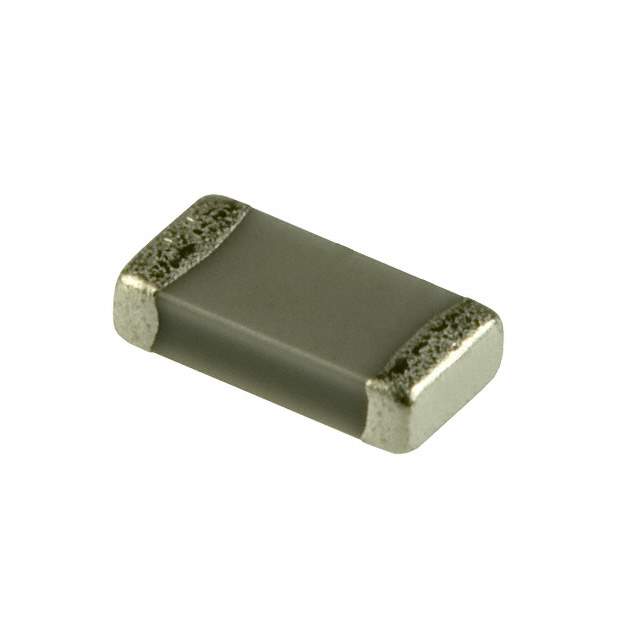

The Panasonic ECJ3YB1E475K is a multilayer ceramic capacitor (MLCC) designed for general-purpose applications in electronic circuits. It is commonly used for decoupling, bypass, and filtering due to its small size, high capacitance value, and stable performance characteristics.

Applications:

• Decoupling: Used to decouple integrated circuits (ICs) by providing a local energy source and reducing noise on the power supply lines.
• Bypass: Employed as bypass capacitors to shunt high-frequency noise to ground, preventing it from affecting other parts of the circuit.
• Filtering: Integrated into filtering circuits to remove unwanted frequencies and smooth out voltage fluctuations.
• General-Purpose: Suitable for a wide range of general-purpose applications in consumer electronics, industrial equipment, and automotive systems.

Features:

• Capacitance: Features a capacitance value of 4.7 µF, providing a significant amount of capacitance in a small package.
• Voltage Rating: Rated for 25 VDC, making it suitable for use in various low-voltage applications.
• X5R Dielectric: Utilizes an X5R dielectric material, providing stable capacitance over a temperature range of -55°C to +85°C.
• Small Size: Available in a small case size, allowing for high-density circuit designs.
• RoHS Compliant: Complies with RoHS directives, ensuring environmental friendliness.

Benefits:

• Stable Performance: Offers stable capacitance and low equivalent series resistance (ESR) over a wide temperature range, ensuring reliable circuit operation.
• High Capacitance Value: Provides a high capacitance value in a small package, reducing the need for multiple capacitors.
• Compact Design: Enables compact circuit designs, saving valuable board space.
• Reliability: Offers high reliability and long operational life, reducing the need for frequent replacements.

Additional Details:

The ECJ3YB1E475K capacitor is designed for surface mount technology (SMT) and is compatible with automated assembly processes. It's important to follow the manufacturer's soldering guidelines to ensure proper device mounting and avoid thermal shock. The capacitor's tolerance rating (K = ±10%) specifies the allowable deviation from its nominal capacitance value.
