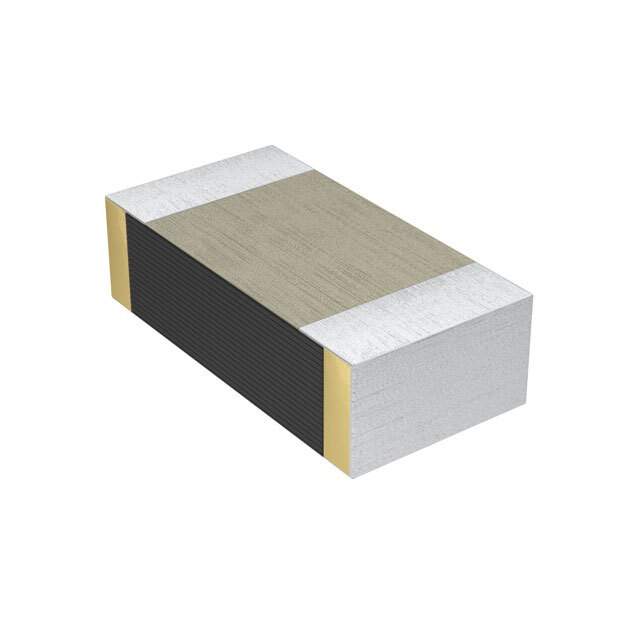

The Panasonic ECHU1H332JX5 is a metallized film capacitor designed for general-purpose applications where stable performance and compact size are required.

Applications:

• Bypass capacitors in electronic circuits
• DC blocking in audio applications
• Filtering in signal processing circuits
• Timing applications
• General purpose coupling and decoupling

Features:

• Capacitance: 3300pF (332): Offers a moderate capacitance value for various applications.
• Voltage Rating: 50V DC: Suitable for many low-voltage electronic circuits.
• Tolerance: ±5%: Provides reasonable accuracy for general-purpose use.
• Surface Mount Device (SMD): Allows for automated assembly and compact board layouts.
• Operating Temperature Range: -40°C to +85°C: Suitable for a wide range of environmental conditions.
• RoHS Compliant: Meets environmental regulations for hazardous substances.

Benefits:

• Stable Performance: Metallized film ensures consistent characteristics over time and temperature.
• Compact Size: SMD package saves valuable board space.
• Reliable Operation: Designed for long-term use in electronic circuits.
• Easy Assembly: SMD format simplifies manufacturing processes.
• Versatile: Suitable for a wide range of electronic applications.

Additional Details:

The ECHU1H332JX5 utilizes a metallized film dielectric to ensure stable electrical characteristics and long life. Its surface-mount design makes it ideal for modern, compact electronic devices. The capacitor is well-suited for a variety of applications where reliability, stability, and small size are important factors. The ±5% tolerance provides adequate performance for general applications. Common uses include power supplies, audio equipment, and signal processing circuits.
