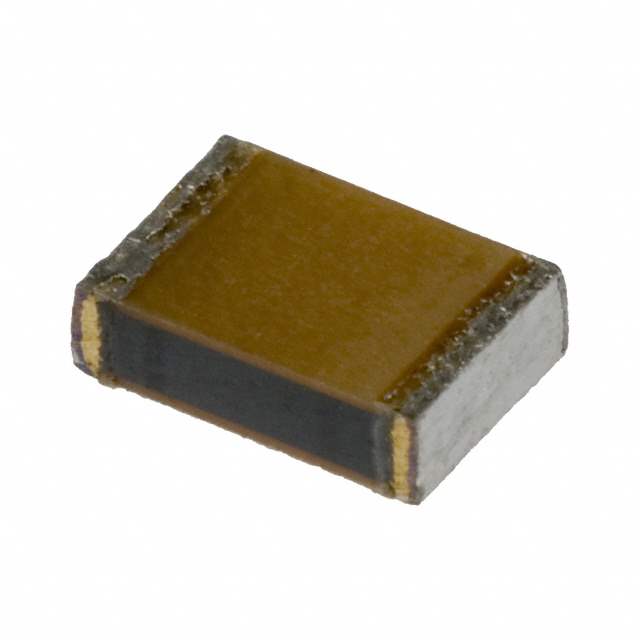

ECH-U1H683GC9 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Capacitors
Manufacturer Panasonic Electronic Components
Packaging Reel - TR
Status Obsolete(EOL)
Capacitance 0.068μF
Tolerance ±2%
Voltage Rating - DC 50V
Dielectric Material Polyphenylene Sulfide (PPS), Metallized - Stacked
Temperature Range - Operating -55°C to 125°C
Mounting SMD (SMT)
Dimension 0.189" L x 0.130" W (4.80mm x 3.30mm)
Height - Seated (Max) 0.087" (2.20mm)
Termination Solder Pads
Applications General Purpose
Win Source Part Number 000939-ECH-U1H683GC9
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian ECH-U1H683GC9 CAD Model

Description

Features and Benefits

  • Superior performance in high-frequency circuits
  • Excellent temperature characteristics
  • Enhanced durability for long-term use

Applications and Projects

  • Telecommunication infrastructures
  • Automotive systems
  • Advanced computing devices

The ECH-U1H683GC9 is engineered for high-frequency circuits, delivering superior performance and exceptional temperature management. Its durable build makes it an excellent choice for demanding projects that require long-term stability.
