Same model may have multiple batches, images only for reference.

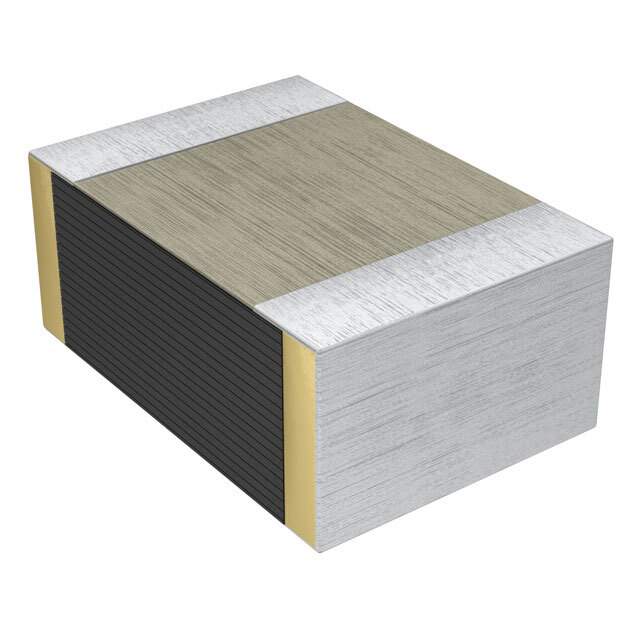

ECH-U1H184GX9 Real Image
Same model may have multiple batches, images only for reference.

ECH-U1H184GX9

Part No ECH-U1H184GX9
Manufacturer Panasonic
Catalog Film Capacitors
Description CAP FILM 0.18UF 2% 50VDC 2416  /  0.18 µF Film Capacitor 30V 50V Polyphenylene Sulfide (PPS), Metallized - Stacked 2416 (6041 Metric)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Film Capacitors
Mfr Panasonic Electronic Components
Series ECH-U(X)
Package Tape & Reel
Capacitance 0.18 µF
Tolerance ±2%
Voltage Rating - AC 30V
Voltage Rating - DC 50V
Dielectric Material Polyphenylene Sulfide (PPS), Metallized - Stacked
Temperature Range - Operating -55°C ~ 125°C
Mounting SMD (SMT)
Package / Case 2416 (6041 Metric)
Dimension 0.236" L x 0.161" W (6.00mm x 4.10mm)
Height - Seated (Max) 0.106" (2.70mm)
Termination Solder Pads
Applications General Purpose
Base Product Number ECH-U1
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.25.0010
Other Names PCF1555DKR,PCF1555TR,Q6223430S,PCF1555CT,ECHU1H184GX9
Standard Package 2,000
Win Source Part Number 1003965-ECH-U1H184GX9
Ultra Librarian 3D Model Ultra Librarian ECH-U1H184GX9 CAD Model

Description

The Panasonic Electronic Components ECH-U(X) series film capacitor is designed for general-purpose applications.

  • Capacitance: 0.18 µF
  • Tolerance: ±2%
  • Voltage Rating: 30V AC, 50V DC
  • Height: 0.106" (2.70mm)
  • Package / Case: 2416 (6041 Metric)
  • Operating Temperature: -55°C to 125°C
  • Dielectric Material: Polyphenylene Sulfide (PPS), Metallized - Stacked
  • Mounting Type: SMD (SMT)
  • Package: Tape & Reel
  • Ideal for: Applications where high reliability and performance are required
