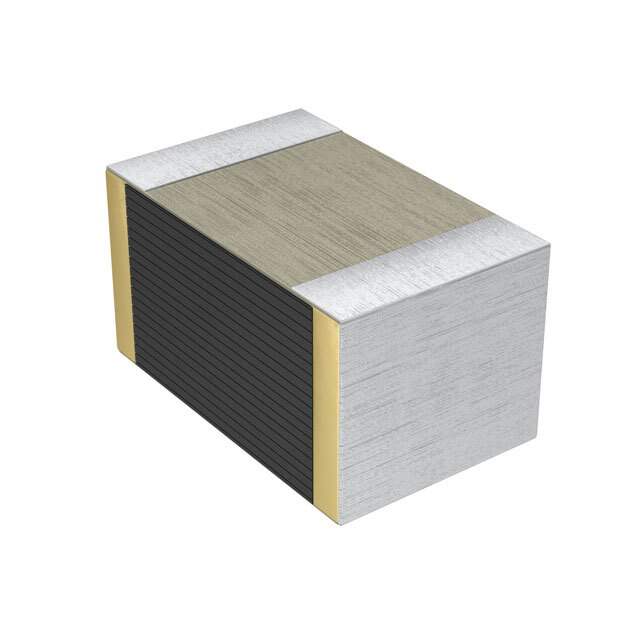

ECH-U1C822JX5 Real Image
Same model may have multiple batches, images only for reference.

ECH-U1C822JX5

Part No ECH-U1C822JX5
Manufacturer Panasonic
Catalog Film Capacitors
Description CAP FILM 8200PF 5% 16VDC 0805
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer Panasonic Electronic Components
Packaging Reel - TR
Status Active
Capacitance 8200pF
Tolerance ±5%
Voltage Rating - DC 16V
Dielectric Material Polyphenylene Sulfide (PPS), Metallized - Stacked
Temperature Range - Operating -55°C to 125°C
Mounting SMD (SMT)
Dimension 0.079" L x 0.049" W (2.00mm x 1.25mm)
Height - Seated (Max) 0.051" (1.30mm)
Termination Solder Pads
Applications General Purpose
Win Source Part Number 000849-ECH-U1C822JX5
Popularity Medium
Supply and Demand Status Sufficient
Quantity per package 3k pcs
Ultra Librarian 3D Model Ultra Librarian ECH-U1C822JX5 CAD Model

Description

Description

The ECH-U1C822JX5 is engineered to provide excellent performance and reliability in demanding electronic applications, enhancing both efficiency and lifespan of devices.

Features and Benefits

  • Low ESR and ESL characteristics.
  • Temperature stability across a wide range.
  • Compact and lightweight design.
  • Environmentally compliant with low harmful substance emissions.

Applications

  • Energy Storage Systems
  • Robotics
  • Aerospace Electronics
  • High-End Audio Equipment
