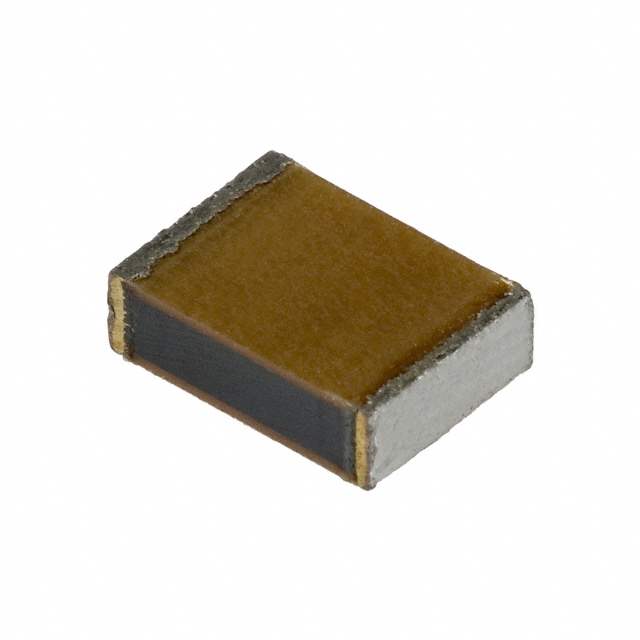

ECH-U1393JC9 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Capacitors
Manufacturer Panasonic Electronic Components
Packaging Reel - TR
Status Active
Capacitance 0.039μF
Tolerance ±5%
Voltage Rating - DC 100V
Dielectric Material Polyphenylene Sulfide (PPS), Metallized - Stacked
Temperature Range - Operating -55°C to 105°C
Mounting SMD (SMT)
Dimension 0.236" L x 0.161" W (6.00mm x 4.10mm)
Height - Seated (Max) 0.087" (2.20mm)
Termination Solder Pads
Applications General Purpose
Win Source Part Number 117499-ECH-U1393JC9
Popularity Medium
Supply and Demand Status Balance
Quantity per package 3k pcs
Ultra Librarian 3D Model Ultra Librarian ECH-U1393JC9 CAD Model

Description

Product Description for ECH-U1393JC9

The ECH-U1393JC9 is a highly reliable ceramic capacitor known for its stability and performance in high-frequency applications. It offers exceptional electrical characteristics, making it an ideal choice for precise and demanding environments.

Applications/Projects:

  • Telecommunications Equipment
  • High-Frequency RF Circuits
  • Signal Processing
  • Power Supply Circuits

Features and Benefits:

  • High capacitance stability over varied temperatures
  • Low ESR (Equivalent Series Resistance) for efficient performance
  • Compact and lightweight design for space-constrained applications
  • Long lifespan ensuring durability

With its advanced materials and design, the ECH-U1393JC9 ensures minimal loss, supporting the efficiency and reliability of your electronic projects.
