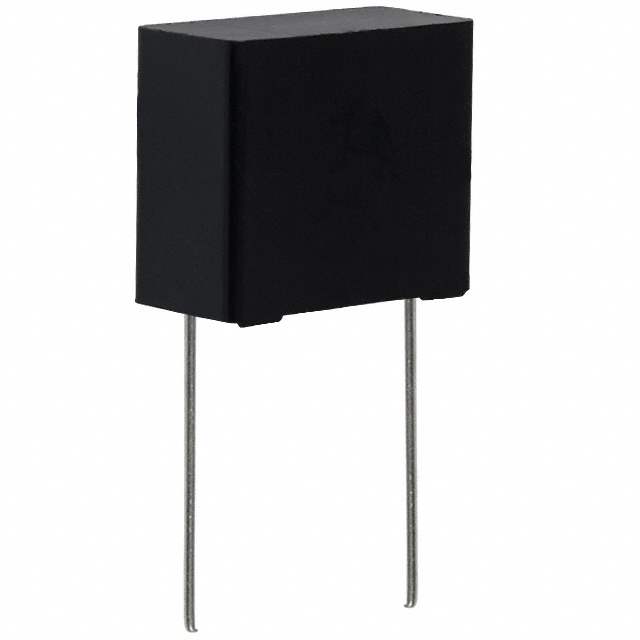

ECQ-U2A105ML Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Capacitors
Manufacturer Panasonic Electronic Components
Packaging Bulk
Status Active
Capacitance 1μF
Tolerance ±20%
Voltage Rating - AC 275V
Dielectric Material Polyester, Metallized
Temperature Range - Operating -40°C to 100°C
Mounting Through Hole
Dimension 1.004" L x 0.472" W (25.50mm x 12.00mm)
Height - Seated (Max) 0.886" (22.50mm)
Termination PC Pins
Lead Spacing 0.886" (22.50mm)
Applications EMI, RFI Suppression
Features X2 Safety Rated
Win Source Part Number 123771-ECQ-U2A105ML
Popularity Medium
Supply and Demand Status Balance
Quantity per package 100
Ultra Librarian 3D Model Ultra Librarian ECQ-U2A105ML CAD Model

Description

Overview of ECQ-U2A105ML

The ECQ-U2A105ML is a highly reliable, metallized polypropylene film capacitor designed for diverse electronic applications. These capacitors are ideal for high-frequency and precision circuits due to their excellent electrical characteristics.

Key Features and Benefits

  • High stability and reliability across a wide range of temperatures.
  • Excellent self-healing properties ensuring long life and durability.
  • Low dissipation factor and impedance.

Applications

  • Power factor correction in motors and appliances.
  • Snubber circuits for reducing voltage spikes.
  • EMI suppression in electric circuits.

The ECQ-U2A105ML is compliant with rigorous industry standards, making it a versatile choice for engineers seeking top performance and reliability.
