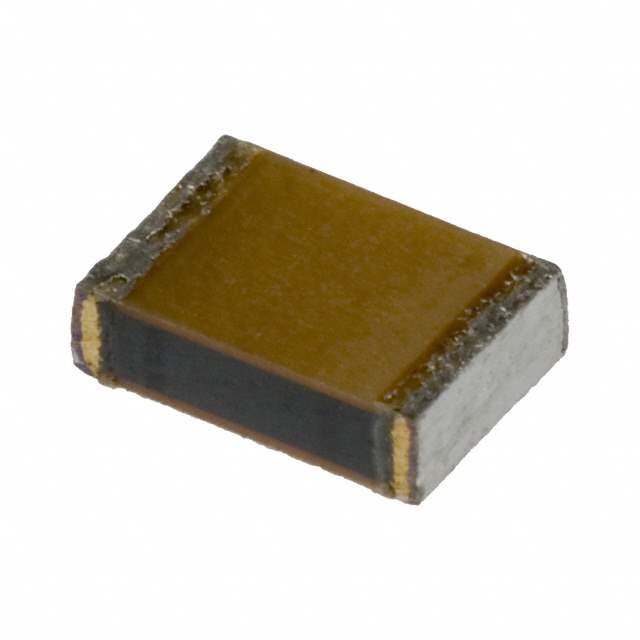

ECH-U1183JC9 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Capacitors
Manufacturer Panasonic Electronic Components
Packaging Reel - TR
Status Active
Capacitance 0.018μF
Tolerance ±5%
Voltage Rating - DC 100V
Dielectric Material Polyphenylene Sulfide (PPS), Metallized - Stacked
Temperature Range - Operating -55°C to 105°C
Mounting SMD (SMT)
Dimension 0.189" L x 0.130" W (4.80mm x 3.30mm)
Height - Seated (Max) 0.087" (2.20mm)
Termination Solder Pads
Applications General Purpose
Win Source Part Number 116643-ECH-U1183JC9
Popularity Medium
Supply and Demand Status Balance
Quantity per package 3k pcs
Ultra Librarian 3D Model Ultra Librarian ECH-U1183JC9 CAD Model

Description

Product Overview

The ECH-U1183JC9 capacitor is engineered to provide exceptional reliability in various electronic environments. Its advanced materials and design ensure optimal performance even under challenging conditions.

Features and Benefits

  • Outstanding thermal stability
  • Low leakage current for energy efficiency
  • Durable design for extended service life
  • Wide operating temperature range

Applications

  • Telecommunications equipment
  • Automotive electronics
  • Renewable energy systems
  • Networking hardware

This capacitor offers a perfect balance of performance and durability, making it a valuable asset for various high-tech applications.
