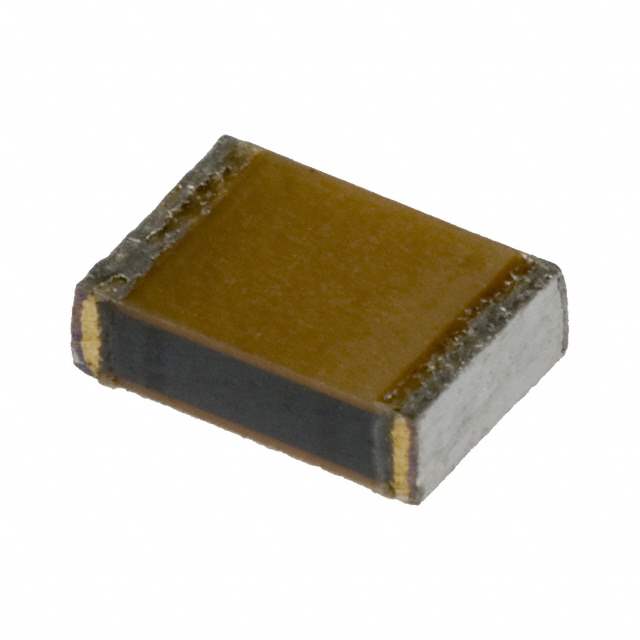

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Capacitors
Manufacturer Panasonic Electronic Components
Packaging Reel - TR
Status Active
Capacitance 0.015μF
Tolerance ±5%
Voltage Rating - DC 100V
Dielectric Material Polyphenylene Sulfide (PPS), Metallized - Stacked
Temperature Range - Operating -55°C to 105°C
Mounting SMD (SMT)
Dimension 0.189" L x 0.130" W (4.80mm x 3.30mm)
Height - Seated (Max) 0.087" (2.20mm)
Termination Solder Pads
Applications General Purpose
Win Source Part Number 103571-ECH-U1153JC9
Popularity Medium
Supply and Demand Status Balance
Quantity per package 3k pcs
Ultra Librarian 3D Model Ultra Librarian ECH-U1153JC9 CAD Model

Description

Description:

The ECH-U1153JC9 is a state-of-the-art SMD film capacitor renowned for its exceptional durability and efficiency in dynamic applications. It is engineered to provide reliable and consistent performance in both commercial and industrial sectors.

Features & Benefits:

  • High durability for prolonged lifecycle in diverse applications.
  • Minimal energy leakage to enhance efficiency.
  • Compact design tailored for modern electronics.
  • Reliable performance under varied operational conditions.

Applications:

  • Robotics and automation
  • Wireless communication devices
  • Embedded systems
  • Instrumentation and control systems
