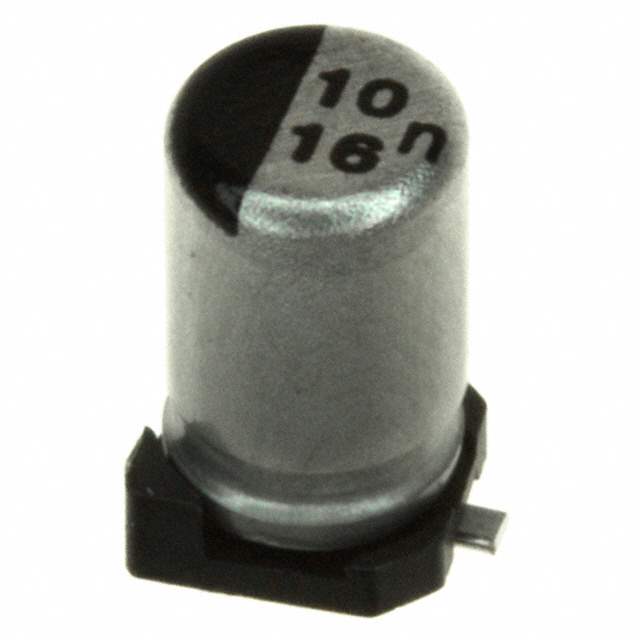

ECE-V1CS100SR Real Image
Same model may have multiple batches, images only for reference.

ECE-V1CS100SR

Part No ECE-V1CS100SR
Manufacturer Panasonic
Catalog Aluminum Capacitors
Description CAP ALUM 10UF 20% 16V SMD
Datasheet
ECE-V1CS100SR Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer Panasonic Electronic Components
Packaging Reel - TR
Status Obsolete(EOL)
Capacitance 10μF
Tolerance ±20%
Voltage Rating 16V
Lifetime @ Temp. 1000 Hrs @ 85°C
Temperature Range - Operating -40°C to 85°C
Polarization Polar
Applications General Purpose
Ripple Current - Low Frequency 20mA @ 120Hz
Height - Seated (Max) 0.213" (5.40mm)
Surface Mount Land Size 0.130" L x 0.130" W (3.30mm x 3.30mm)
Mounting SMD (SMT)
Dimension Radial, Can - SMD
Win Source Part Number 118182-ECE-V1CS100SR
Popularity Medium
Supply and Demand Status Balance
Application Field Used in Industrial
Ultra Librarian 3D Model Ultra Librarian ECE-V1CS100SR CAD Model

Description

ECE-V1CS100SR Capacitor

The ECE-V1CS100SR capacitor is designed to offer stable performance in a compact design, making it suitable for various electronic devices. Its high capacitance and reliability make it a preferred choice for engineers.

  • Applications:
    • Power supply units
    • Consumer electronics
    • Automotive electronics
    • LED drivers
  • Features and Benefits:
    • Compact footprint
    • High capacitance value
    • Excellent temperature performance
    • Cost-effective solution
  • Additional Details: The ECE-V1CS100SR is designed to withstand rigorous operating conditions, ensuring long-term reliability and performance.
