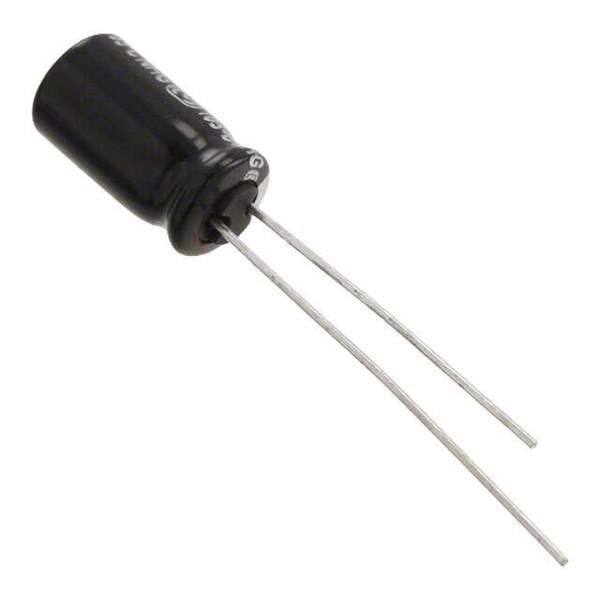

Same model may have multiple batches, images only for reference.

ECA-2AHG100

Name: ECA-2AHG100
Brand: Panasonic
SKU: 1044107
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	ECA-2AHG100
Manufacturer	Panasonic
Catalog	Aluminum Capacitors
Description	CAP ALUM 10UF 20% 100V RADIAL / 10 µF 100 V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 105°C
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors>Aluminum Electrolytic Capacitors
Mfr	Panasonic Electronic Components
Series	NHG-A
Package	Bulk
Capacitance	10 µF
Tolerance	±20%
Voltage - Rated	100 V
Lifetime @ Temp.	1000 Hrs @ 105°C
Temperature Range - Operating	-55°C ~ 105°C
Polarization	Polar
Applications	General Purpose
Ripple Current @ Low Frequency	54 mA @ 120 Hz
Ripple Current @ High Frequency	108 mA @ 100 kHz
Lead Spacing	0.098" (2.50mm)
Dimension	0.248" Dia (6.30mm)
Height - Seated (Max)	0.480" (12.20mm)
Mounting Type	Through Hole
Package / Case	Radial, Can
Base Product Number	ECA-2AH
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0020
Other Names	P5593,ECA2AHG100
Standard Package	200
Win Source Part Number	1044107-ECA-2AHG100
Ultra Librarian 3D Model	Ultra Librarian ECA-2AHG100 CAD Model

Description

The Panasonic Electronic Components ECA-2AHG100 is an aluminum electrolytic capacitor with a capacitance of 10μF and a voltage rating of 100V.

Capacitance: 10μF
Voltage Rating: 100V
Application: General-Purpose
Polarization: Polarized
Tolerance: ±20%
Operating Temperature: -55°C to 105°C
Case: Radial, Can
Seated Height: 0.480" (12.20mm)
Ripple Current: 54 mA @ 120 Hz and 108 mA @ 100 kHz
Popularity: Popular
Supply and Demand: Balanced
