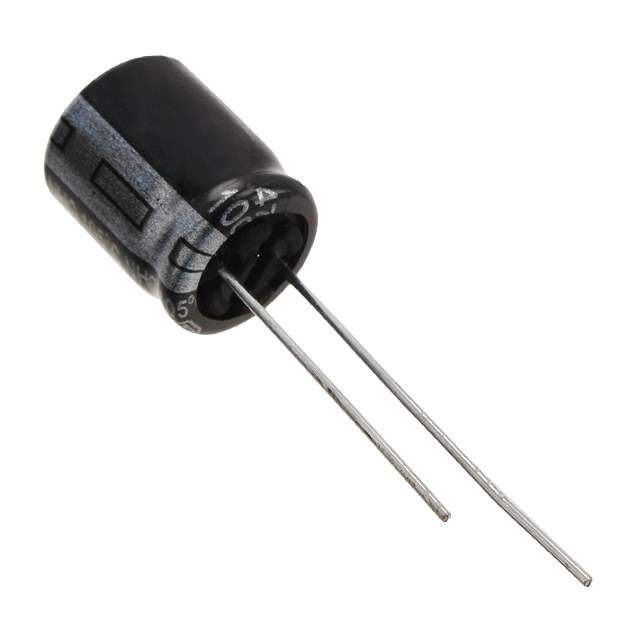

Same model may have multiple batches, images only for reference.

ECA-1VHG471

Name: ECA-1VHG471
Brand: Panasonic
SKU: 1206864
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	ECA-1VHG471
Manufacturer	Panasonic
Catalog	Aluminum Capacitors
Description	CAP ALUM 470UF 20% 35V RADIAL / 470 µF 35 V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors>Aluminum Electrolytic Capacitors
Mfr	Panasonic Electronic Components
Series	NHG-A
Package	Bulk
Capacitance	470 µF
Tolerance	±20%
Voltage - Rated	35 V
Lifetime @ Temp.	2000 Hrs @ 105°C
Temperature Range - Operating	-55°C ~ 105°C
Polarization	Polar
Applications	General Purpose
Ripple Current @ Low Frequency	460 mA @ 120 Hz
Ripple Current @ High Frequency	690 mA @ 100 kHz
Lead Spacing	0.197" (5.00mm)
Dimension	0.394" Dia (10.00mm)
Height - Seated (Max)	0.669" (17.00mm)
Mounting Type	Through Hole
Package / Case	Radial, Can
Base Product Number	ECA-1VH
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0020
Other Names	ECA1VHG471,P5554
Standard Package	200
Win Source Part Number	1206864-ECA-1VHG471
Ultra Librarian 3D Model	Ultra Librarian ECA-1VHG471 CAD Model

Alternative Products

Description

The Panasonic Electronic Components NHG-A series ECA-1VHG471 capacitor is a general-purpose aluminum electrolytic capacitor.

Capacitance: 470 µF
Voltage Rating: 35 V
Tolerance: ±20%
Polarized: yes
Ripple Current: 460 mA @ 120 Hz and 690 mA @ 100 kHz
Mounting Type: through-hole
Packaging: bulk
Height: 0.669" (17.00mm)
Diameter: 0.394" (10.00mm)
RoHS Compliance: RoHS compliant
REACH Regulations: unaffected
Standard Package: 200
Cross-Reference: ECA 1VHG471, ECA-1VHG471., and ECA1VHG471
