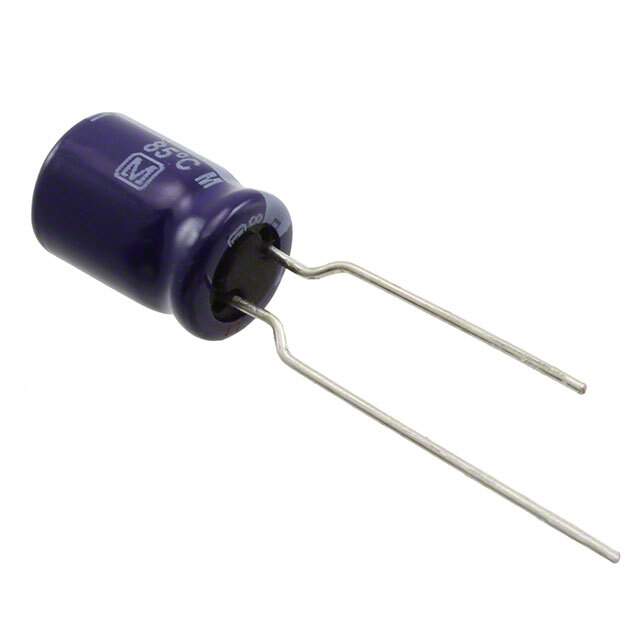

Same model may have multiple batches, images only for reference.

ECA-1JM101

Name: ECA-1JM101
Brand: Panasonic
SKU: 1328531
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	ECA-1JM101
Manufacturer	Panasonic
Catalog	Aluminum Capacitors
Description	CAP ALUM 100UF 20% 63V RADIAL / 100 µF 63 V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors>Aluminum Electrolytic Capacitors
Manufacturer	Panasonic Electronic Components
Packaging	Bulk
Capacitance	100 µF
Tolerance	±20%
Voltage - Rated	63 V
Lifetime @ Temp.	2000 Hrs @ 85°C
Temperature Range - Operating	-40°C ~ 85°C
Polarization	Polar
Applications	General Purpose
Ripple Current @ Low Frequency	270 mA @ 120 Hz
Ripple Current @ High Frequency	459 mA @ 10 kHz
Lead Spacing	0.138" (3.50mm)
Size / Dimension	0.315" Dia (8.00mm)
Height - Seated (Max)	0.492" (12.50mm)
Mounting	Through Hole
Case / Package	Radial, Can
Base Product Number	ECA-1JM
RoHS Status	ROHS3 Compliant
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0020
Other Part Number	P5193,ECA1JM101,Q1631638
Standard Package	200
Win Source Part Number	1328531-ECA-1JM101
Ultra Librarian 3D Model	Ultra Librarian ECA-1JM101 CAD Model

Alternative Products

Description

The electronic component with Id 1142080 is a capacitor manufactured by Panasonic Electronic Components.

Application: General-Purpose
Type: Aluminum Electrolytic Capacitor
Polarized: Yes
Capacitance: 100μF
Voltage Rating: 63V
RoHS3 Compliant: Yes
Ripple Current (Low Frequency): 270mA @ 120Hz
Ripple Current (High Frequency): 459mA @ 100kHz
