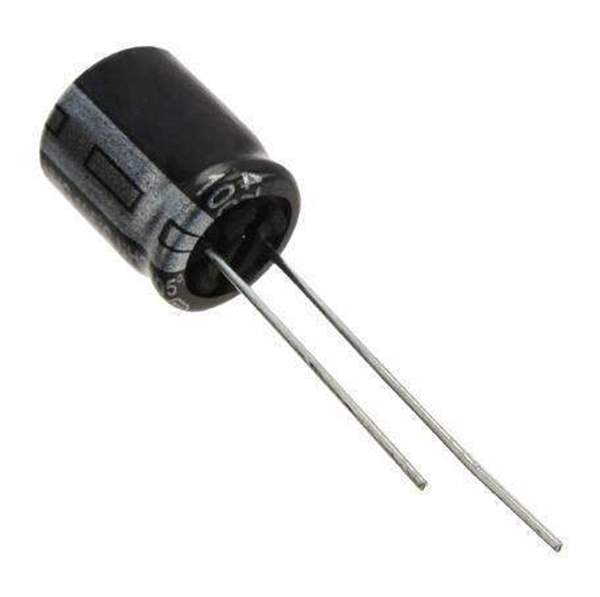

Same model may have multiple batches, images only for reference.

ECA-1JHG331B

Name: ECA-1JHG331B
Brand: Panasonic
SKU: WS1306078
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	ECA-1JHG331B
Manufacturer	Panasonic
Catalog	Aluminum Capacitors
Description	CAP ALUM 330UF 20% 63V RADIAL
Datasheet	ECA-1JHG331B Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Manufacturer	Panasonic Electronic Components
Category	Capacitors Aluminum Electrolytic Capacitors
Part Status	Active
Capacitance	330 µF
Tolerance	±20%
Voltage - Rated	63 V
Lifetime @ Temp.	2000 Hrs @ 105°C
Operating Temperature	-55°C ~ 105°C
Ripple Current @ Low Frequency	510 mA @ 120 Hz
Ripple Current @ High Frequency	765 mA @ 100 kHz
Lead Spacing	0.197" (5.00mm)
Size / Dimension	0.394" Dia (10.00mm)
Height - Seated (Max)	0.866" (22.00mm)
Win Source Part Number	WS1306078-ECA-1JHG331B
Ultra Librarian 3D Model	Ultra Librarian ECA-1JHG331B CAD Model

Description

Features
● Endurance : 105 ℃ 1000 h to 2000 h
● AEC-Q200 compliant (6.3 V to 100 V)
● RoHS compliant
