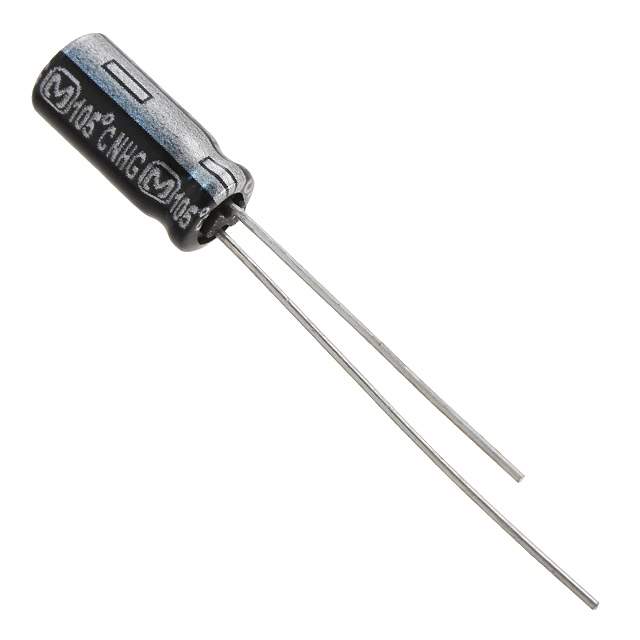

ECA-1HHG220 Real Image
Same model may have multiple batches, images only for reference.

ECA-1HHG220

Part No ECA-1HHG220
Manufacturer Panasonic
Catalog Aluminum Capacitors
Description CAP ALUM 22UF 20% 50V RADIAL / 22 µF 50 V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 105°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Aluminum Electrolytic Capacitors
Mfr Panasonic Electronic Components
Series NHG-A
Package Bulk
Capacitance 22 µF
Tolerance ±20%
Voltage - Rated 50 V
Lifetime @ Temp. 1000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Polarization Polar
Applications General Purpose
Ripple Current @ Low Frequency 65 mA @ 120 Hz
Ripple Current @ High Frequency 130 mA @ 100 kHz
Lead Spacing 0.079" (2.00mm)
Dimension 0.197" Dia (5.00mm)
Height - Seated (Max) 0.472" (12.00mm)
Mounting Type Through Hole
Package / Case Radial, Can
Base Product Number ECA-1HH
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Other Names Q3134616DDD,ECA1HHG220,P5568
Standard Package 200
Win Source Part Number 1035873-ECA-1HHG220
Ultra Librarian 3D Model Ultra Librarian ECA-1HHG220 CAD Model

Description

The Panasonic NHG-A series aluminum electrolytic capacitor with a capacitance of 22 µF and a voltage rating of 50 V is suitable for general-purpose applications.

  • Capacitance: 22 µF
  • Voltage Rating: 50 V
  • Tolerance: ±20%
  • Lead Spacing: 0.079" (2.00mm)
  • ESR: Not specified
  • Mounting Type: Through Hole
  • Package/Case: Radial, Can
  • Operating Temperature: -55°C to 105°C
  • Lifetime: 1000 Hours @ 105°C
  • Polarization: Polarized
  • Ripple Current (Low Frequency): 65 mA @ 120 Hz
  • Ripple Current (High Frequency): 130 mA @ 100 kHz
  • Dimensions: 0.197" Dia (5.00mm)
  • Packaging: Bulk
  • Standard Package Quantity: 200
