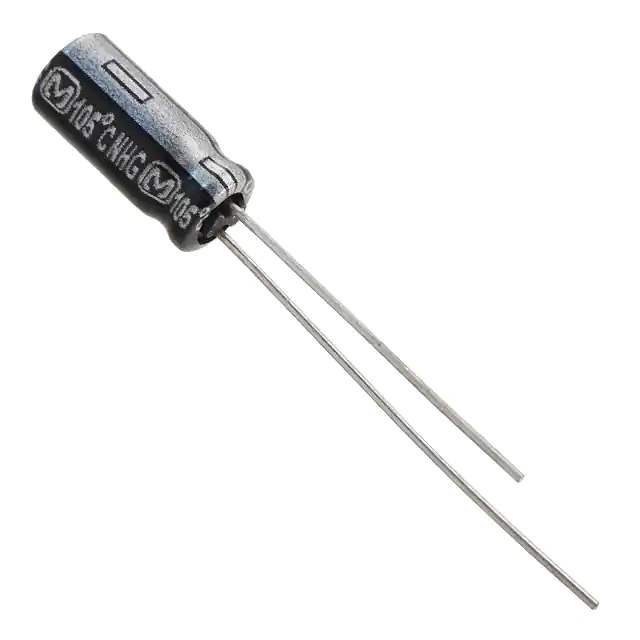

ECA-1HHG100 Real Image
Same model may have multiple batches, images only for reference.

ECA-1HHG100

Part No ECA-1HHG100
Manufacturer Panasonic
Catalog Aluminum Capacitors
Description CAP ALUM 10UF 20% 50V RADIAL / 10 μF 50 V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 105°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Panasonic
Series NHG-A
Package Bulk
Product Status Active
Capacitance 10 µF
Tolerance ±20%
Voltage - Rated 50 V
Lifetime @ Temp. 1000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Polarization Polar
Applications General Purpose
Ripple Current @ Low Frequency 39 mA @ 120 Hz
Ripple Current @ High Frequency 78 mA @ 100 kHz
Lead Spacing 0.079" (2.00mm)
Size / Dimension 0.197" Dia (5.00mm)
Height - Seated (Max) 0.472" (12.00mm)
Mounting Type Through Hole
Package / Case Radial, Can
Base Product Number ECA-1HH
Standard Package 200 pcs
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 587917-ECA-1HHG100
Ultra Librarian 3D Model Ultra Librarian ECA-1HHG100 CAD Model

Description

The NHG-A series aluminum electrolytic capacitor is a general-purpose component designed for various electronic applications.

  • Capacitance: 10 μF
  • Voltage Rating: 50 V
  • Tolerance: ±20%
  • ESR: Value that ensures efficient operation
  • Polarization: Polarized
  • Size: 0.197" Dia (5.00mm)
  • Packaging: Bulk, 200 pieces
  • Seated Height: 0.472" (12.00mm)
  • Operating Temperature: -55°C to 105°C
  • Manufacturer: Panasonic
