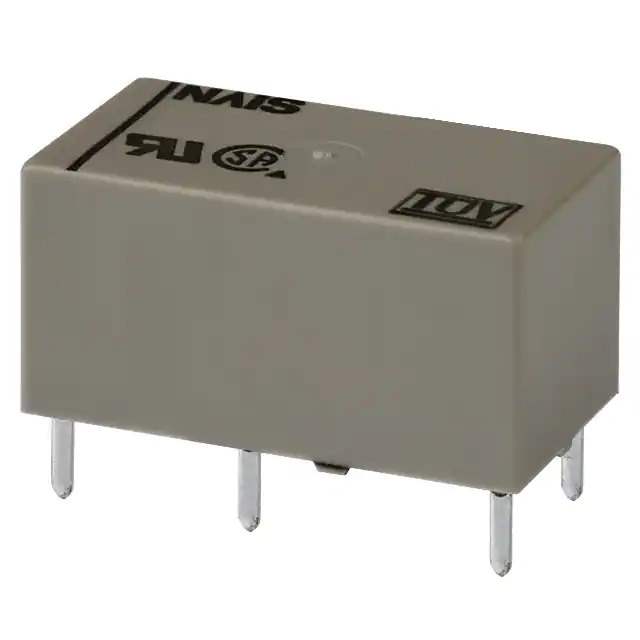

DSP1-DC9V Real Image
Same model may have multiple batches, images only for reference.

DSP1-DC9V

Part No DSP1-DC9V
Manufacturer Panasonic
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE DPST 5A 9V
Datasheet
DSP1-DC9V Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays - Power Relays, Over 2 Amps
Mfr Panasonic
Series DSP
Package Bulk
Product Status Obsolete
Mounting Type Through Hole
Coil Voltage 9VDC
Contact Form DPST-NO/NC (1 Form A, 1 Form B)
Contact Rating (Current) 5 A
Switching Voltage 250VAC, 30VDC - Max
Coil Current 33.3 mA
Coil Type Non Latching
Termination Style PC Pin
Seal Rating Sealed - Fully
Must Operate Voltage 7.2 VDC
Must Release Voltage 0.9 VDC
Operate Time 10 ms
Release Time 5 ms
Temperature Range - Operating -40°C ~ 65°C
Contact Material Silver Tin Oxide (AgSnO)
Relay Type General Purpose
Coil Resistance 270 Ohms
Base Product Number DSP1-DC
Standard Package 50 pcs
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.41.0020
Win Source Part Number 587201-DSP1-DC9V
Ultra Librarian 3D Model Ultra Librarian DSP1-DC9V CAD Model

Description

The DSP1-DC9V is a power relay from Panasonic's DSP series.

  • Contact Form: DPST-NO/NC (1 Form A, 1 Form B)
  • Contact Rating: 5 A
  • Coil Voltage: 9VDC
  • Coil Resistance: 270 Ohms
  • Coil Current: 33.3 mA
  • Operate Time: 10 ms
  • Release Time: 5 ms
  • Switching Voltage: 250VAC and 30VDC maximum
  • Sealed: Fully
  • Mounting Type: Through-Hole
  • Temperature Range: -40°C to 65°C
  • Category: General-Purpose
