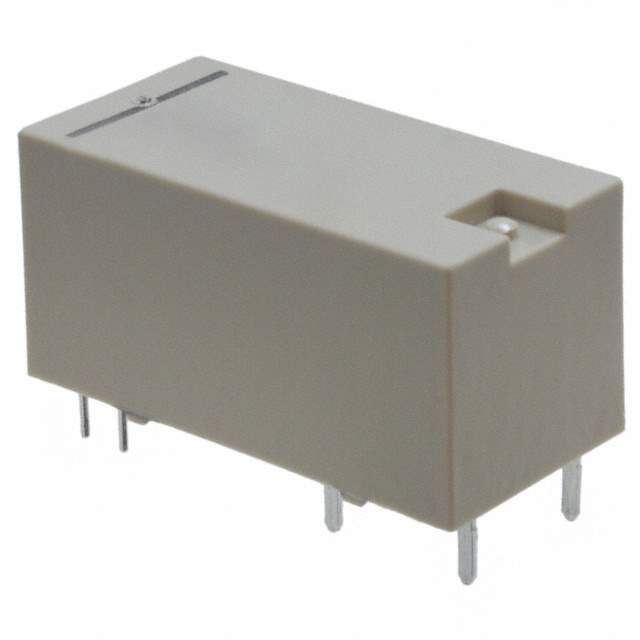

Same model may have multiple batches, images only for reference.

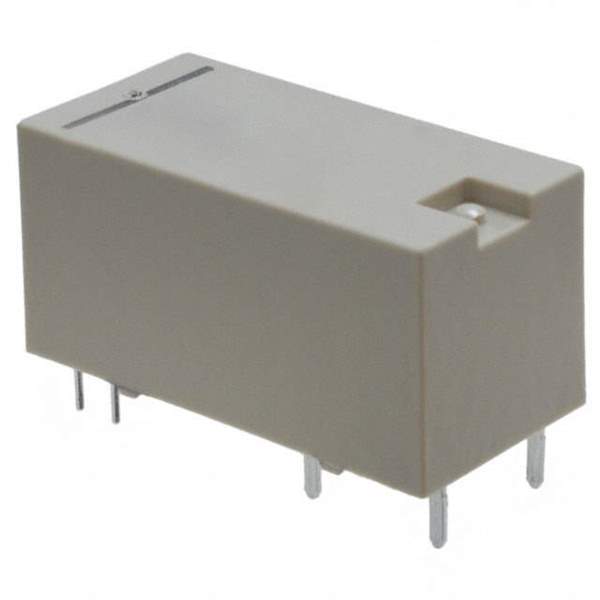

DE1A1B-L2-12V Real Image
Same model may have multiple batches, images only for reference.

DE1A1B-L2-12V

Part No DE1A1B-L2-12V
Manufacturer Panasonic
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE DPST 8A 12V / General Purpose Relay DPST-NO/NC (1 Form A, 1 Form B) 12VDC Coil Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays>Power Relays, Over 2 Amps
Mfr Panasonic Electric Works
Series DE
Package Tube
Mounting Type Through Hole
Coil Voltage 12VDC
Contact Form DPST-NO/NC (1 Form A, 1 Form B)
Contact Rating (Current) 8 A
Switching Voltage 250VAC, 30VDC - Max
Coil Current 16.7 mA
Coil Type Latching, Dual Coil
Termination Style PC Pin
Must Operate Voltage 8.4 VDC
Operate Time 10 ms
Release Time 5 ms
Temperature Range - Operating -40°C ~ 70°C
Contact Material Silver Tin Oxide (AgSnO)
Relay Type General Purpose
Coil Resistance 720 Ohms
Base Product Number DE1A
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.41.0020
Other Names DE1A1BL212V,255-4039-5,DE1A1B-L2-12V-ND
Standard Package 20
Win Source Part Number 1174712-DE1A1B-L2-12V
Ultra Librarian 3D Model Ultra Librarian DE1A1B-L2-12V CAD Model

Description

This Panasonic Electric Works power relay is a general-purpose product with a DPST-NO/NC (1 Form A, 1 Form B) contact form.

  • Coil Voltage: 12VDC
  • Contact Rating: 8A
  • Type: Latching, Dual Coil
  • Coil Resistance: 720 ohms
  • Mounting Type: Through-Hole
  • Termination Style: PC Pin
  • Package: Tube
  • Standard Package: 20
  • Switching Voltage: 250VAC and 30VDC max.
  • Status: Obsolete
