Same model may have multiple batches, images only for reference.

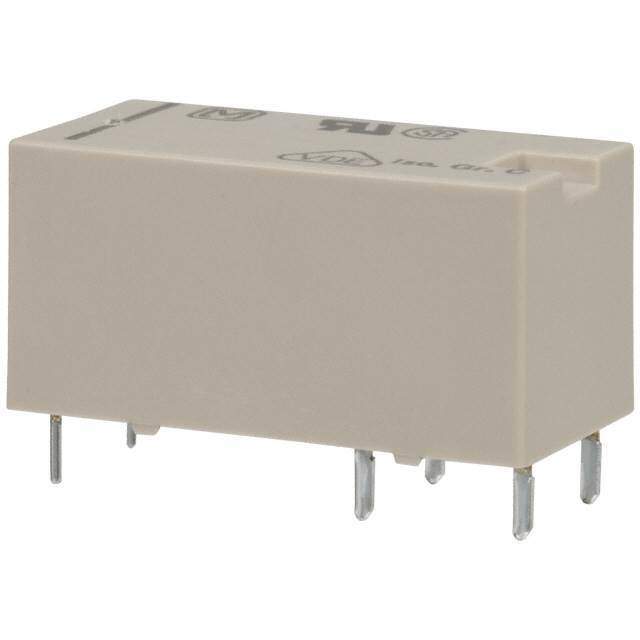

DE1A-L2-12V Real Image
Same model may have multiple batches, images only for reference.

DE1A-L2-12V

Part No DE1A-L2-12V
Manufacturer Panasonic
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE SPST 10A 12V / General Purpose Relay SPST-NO (1 Form A) 12VDC Coil Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays>Power Relays, Over 2 Amps
Mfr Panasonic Electric Works
Series DE
Package Tube
Mounting Type Through Hole
Coil Voltage 12VDC
Contact Form SPST-NO (1 Form A)
Contact Rating (Current) 10 A
Switching Voltage 250VAC, 30VDC - Max
Coil Current 16.7 mA
Coil Type Latching, Dual Coil
Termination Style PC Pin
Must Operate Voltage 8.4 VDC
Operate Time 10 ms
Release Time 5 ms
Temperature Range - Operating -40°C ~ 70°C
Contact Material Silver Tin Oxide (AgSnO)
Relay Type General Purpose
Coil Resistance 720 Ohms
Base Product Number DE1A
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.41.0020
Standard Package 20
Win Source Part Number 1009590-DE1A-L2-12V
Ultra Librarian 3D Model Ultra Librarian DE1A-L2-12V CAD Model

Description

The Panasonic Electric Works DE1A-L2-12V is a general-purpose relay that is designed for power relays over 2 amps. Bold product name: DE1A-L2-12V and Bold manufacturer: Panasonic Electric Works

  • Relay Type: General Purpose
  • Application: Power Relays (over 2 amps)
  • Contact Form: SPST-NO (1 Form A)
  • Contact Material: Silver Tin Oxide (AgSnO)
  • Coil Voltage: 12VDC
  • Contact Rating (Current): 10A
  • Win Source Part Number: 1009590-DE1A-L2-12V
