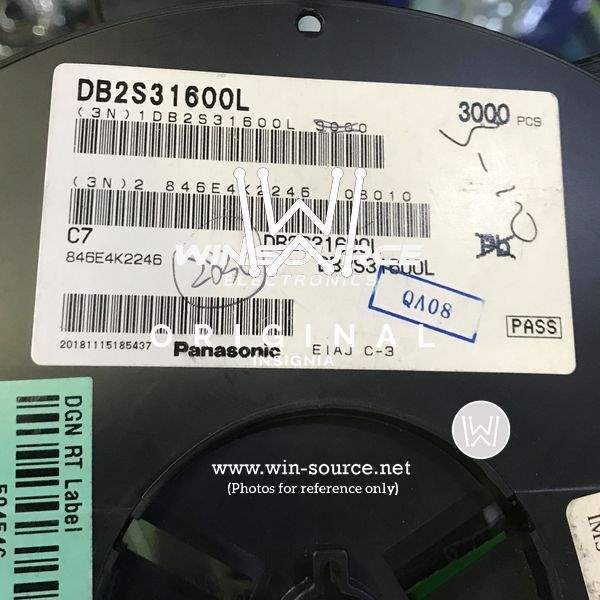

DB2S31600L Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Panasonic Electronic Components
Packaging Reel - TR
Status Active
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 30V
Current - Average Rectified (Io) 100mA
Voltage - Forward (Vf) (Max) @ If 550mV @ 100mA
Reverse Recovery Time (trr) 800ps
Current - Reverse Leakage @ Vr 15μA @ 30V
Capacitance @ Vr, F 2pF @ 10V, 1MHz
Mounting SMD (SMT)
Case / Package SSMini2-F5-B
Operating Temperature - Junction 125°C (Max)
Win Source Part Number 050780-DB2S31600L
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Family Name DB2S316
Introduction Date April 20, 2010
ECCN EAR99
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian DB2S31600L CAD Model

Description

DB2S31600L Diode

The DB2S31600L is engineered for high-performance applications. Its robust and efficient design makes it suitable for integration into complex circuitry projects.

  • Applications:
    • Automotive electronic systems
    • High-performance computing devices
    • Home appliance electronics
    • RF and microwave electronics
  • Features:
    • High thermal efficiency
    • Excellent forward and reverse characteristics
    • Durable construction
    • Rapid switching capabilities
  • Benefits:
    • Maximizes system reliability and efficiency
    • Reduces system downtime
    • Decreases operational costs over the product lifecycle
  • Additional Details: This diode is crafted to endure harsh operational conditions while maintaining optimal performance, ideal for high-demand scenarios.
