Same model may have multiple batches, images only for reference.

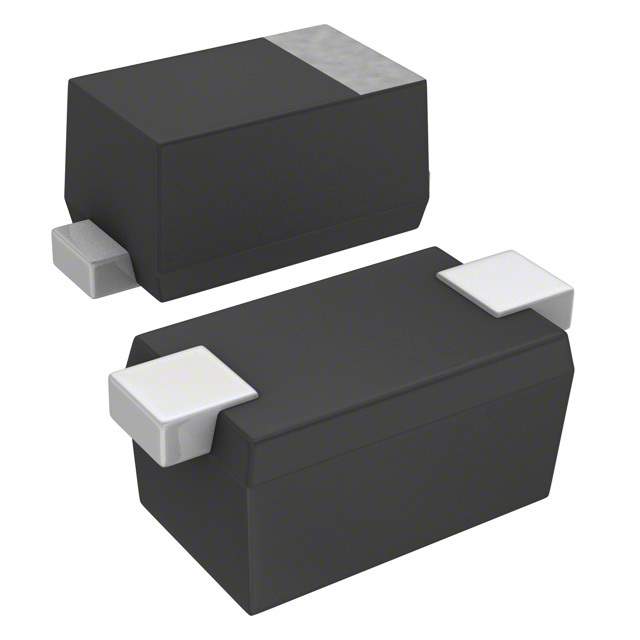

DB2731400L Real Image
Same model may have multiple batches, images only for reference.

DB2731400L

Part No DB2731400L
Manufacturer Panasonic
Catalog Diodes, Rectifiers - Single
Description DIODE SCHOT 30V 30MA SSSMINI2 / Diode 30 V 30mA Surface Mount SSSMini2-F4-B
Datasheet
DB2731400L Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Rectifiers - Single Diodes
Mfr Panasonic Electronic Components
Package Tape & Reel
Technology Schottky
Voltage - DC Reverse (Vr) (Max) 30 V
Current - Average Rectified (Io) 30mA
Voltage - Forward (Vf) (Max) @ If 1 V @ 30 mA
Speed Small Signal =< 200mA (Io) , Any Speed
Reverse Recovery Time (trr) 1 ns
Current - Reverse Leakage @ Vr 300 nA @ 30 V
Capacitance @ Vr, F 1.5pF @ 10V, 1MHz
Mounting Type Surface Mount
Package / Case 2-SMD, Flat Lead
Supplier Device Package SSSMini2-F4-B
Operating Temperature - Junction 125°C (Max)
Base Product Number DB27314
Standard Package 10,000
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.10.0070
Win Source Part Number 1337611-DB2731400L
Ultra Librarian 3D Model Ultra Librarian DB2731400L CAD Model

Description

The Panasonic Electronic Components 1337611-DB2731400L is a Schottky diode designed for use in rectifiers.

  • Average Rectified Current: 30mA
  • Reverse Recovery Time (trr): 1ns
  • Reverse Leakage Current: 300nA @ 30V
  • Capacitance: 1.5pF @ 10V, 1MHz
  • Operating Temperature Range: 125°C (Max)
  • Package: 2-SMD, Flat Lead
  • Voltage - DC Reverse (Vr) (Max): 30V
  • Voltage - Forward (Vf) (Max) @ If: 1V @ 30mA
