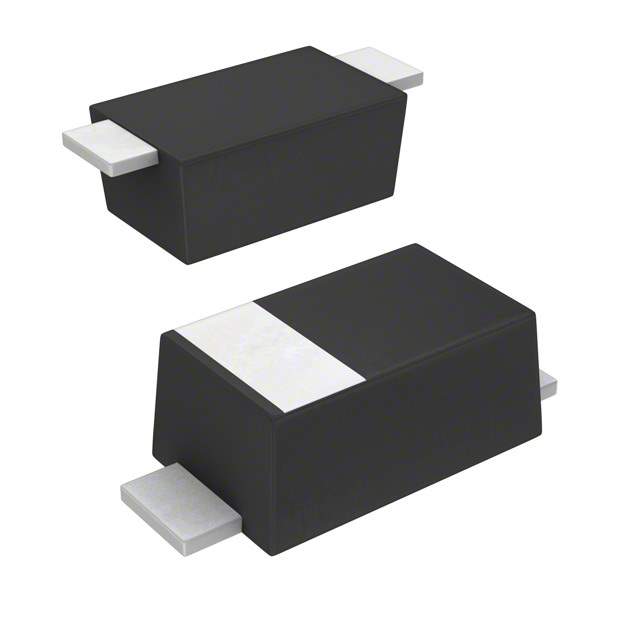

DB2230400L Real Image
Same model may have multiple batches, images only for reference.

DB2230400L

Part No DB2230400L
Manufacturer Panasonic
Catalog Diodes, Rectifiers - Single
Description DIODE SCHOTTKY 30V 1A MINI2
Datasheet
DB2230400L Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Panasonic Electronic Components
Packaging Reel - TR
Status Active
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 30V
Current - Average Rectified (Io) 1A
Voltage - Forward (Vf) (Max) @ If 530mV @ 1A
Speed(Frequency) Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) 20ns
Current - Reverse Leakage @ Vr 30μA @ 30V
Capacitance @ Vr, F 59pF @ 10V, 1MHz
Mounting SMD (SMT)
Case / Package Mini2-F4-B
Operating Temperature - Junction 150°C (Max)
Win Source Part Number 013803-DB2230400L
Popularity Medium
Supply and Demand Status Sufficient
Quantity per package 3k pcs
Ultra Librarian 3D Model Ultra Librarian DB2230400L CAD Model

Description

DB2230400L High-Efficiency Rectifier

The DB2230400L high-efficiency rectifier is engineered to deliver maximum power conversion efficiency in a variety of electronic applications. Its advanced design makes it ideal for both commercial and industrial projects.

  • Applications/projects: Power management systems, electric vehicles, wind and solar energy systems, data centers.

Features and Benefits:

  • Superior energy efficiency reduces power consumption
  • High current and voltage handling capabilities
  • Durable construction for reliable performance
  • Flexible design for versatile application

Additional Details: The DB2230400L's high-efficiency design ensures optimal performance in energy-conscious projects, markedly reducing operational costs.
