Products specifications

Categories Discrete Semiconductor Products
Manufacturer Panasonic Electronic Components
Packaging Reel - TR
Status Active
Diode Configuration 1 Pair Common Cathode
Diode Type Standard
Voltage - DC Reverse (Vr) (Max) 80V
Current - Average Rectified (Io) (per Diode) 100mA (DC)
Voltage - Forward (Vf) (Max) @ If 1.2V @ 100mA
Reverse Recovery Time (trr) 10ns
Current - Reverse Leakage @ Vr 100nA @ 80V
Operating Temperature - Junction 150°C (Max)
Mounting SMD (SMT)

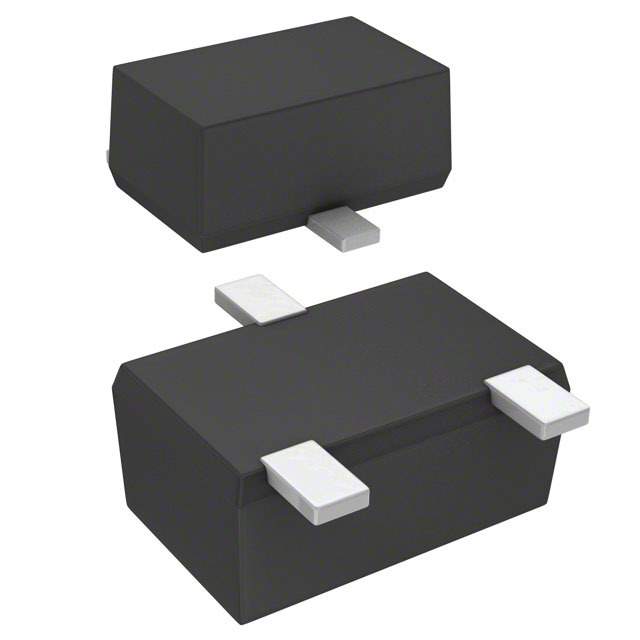

Case / Package SMini3-F2-B
Win Source Part Number 100215-DA3J103E0L
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian DA3J103E0L CAD Model

Description

DA3J103E0L High-Performance Diode

This diode is a high-performance component known for its efficiency and robust design. The DA3J103E0L is ideal for tight spaces and demanding applications.

  • Electrostatic discharge (ESD) protection
  • Signal clamping
  • Reverse polarity protection

Features and Benefits:

  • Enhanced Efficiency: Offers superior performance in signal transmission and power applications.
  • Space-Saving: Designed to fit compact and confined spaces.
  • Robust Build: Guarantees prolonged performance, even in harsh environmental conditions.
  • Low Forward Voltage Drop: Maximizes power efficiency, reducing heat generation.

Due to its advanced features, it is a preferred choice for designers aiming for high reliability and efficiency.
