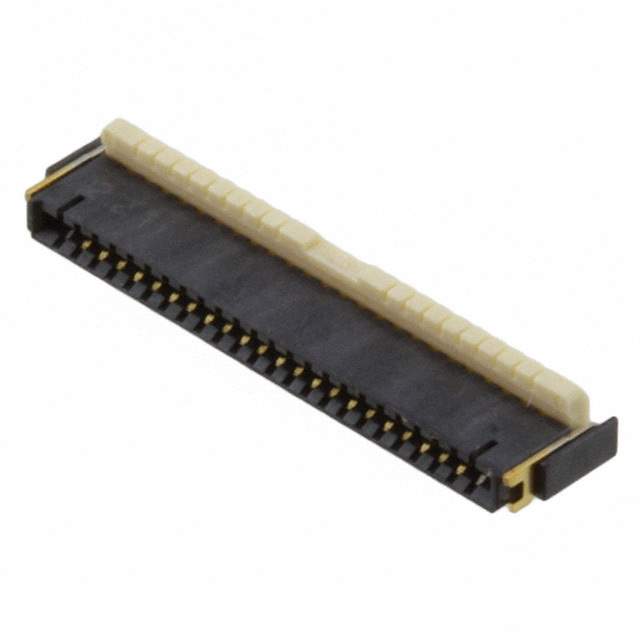

AYF532265TA

Name: AYF532265TA
Brand: Panasonic
SKU: 435827
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	AYF532265TA
Manufacturer	Panasonic
Catalog	FFC, FPC (FlatFlexible) Connectors
Description	CONN FPC 22POS 0.50MM R/A
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Connectors, Interconnects
Manufacturer	Panasonic Electric Works
Packaging	Cut Strip
Status	Active
Flat Flex Type	FPC
Mounting	Surface Mount, Right Angle
Connector/Contact Type	Contacts, Top and Bottom
Number of Positions	22
Pitch	0.020" (0.50mm)
Termination	Solder
FFC, FCB Thickness	0.30mm
Height Above Board	0.039" (1.00mm)
Locking Feature	Flip Lock, Backlock
Cable End Type	Notched
Contact Finish	Gold
Housing Material	Liquid Crystal Polymer (LCP)
Actuator Material	Liquid Crystal Polymer (LCP)
Voltage Rating	50V
Temperature Range - Operating	-55°C to 85°C
Material Flammability Rating	UL94 V-0
Current Rating	0.5A per Contact
Mating Cycles	20
Win Source Part Number	1021168-AYF532265TA
Popularity	Medium
Supply and Demand Status	Sufficient
Quantity per package	500
Ultra Librarian 3D Model	Ultra Librarian AYF532265TA CAD Model

Description

The Panasonic Electric Works 1021168-AYF532265TA is a 22-position FPC connector with a pitch of 0.020" (0.50mm) and a current rating of 0.5A per contact.

Pitch: 0.020" (0.50mm)
Positions: 22
Current Rating: 0.5A per contact
Voltage Rating: 50V
Termination: Soldering
Material: Liquid Crystal Polymer (LCP)
Flammability Rating: UL94 V-0
Mounting: Surface-Mounted, Right Angle
Locking Feature: Flip Lock and Backlock
Thickness: 0.30mm
Height Above Board: 0.039" (1.00mm)
Mating Cycle: 20
Temperature Range: -55°C to 85°C
Market Status: open market
