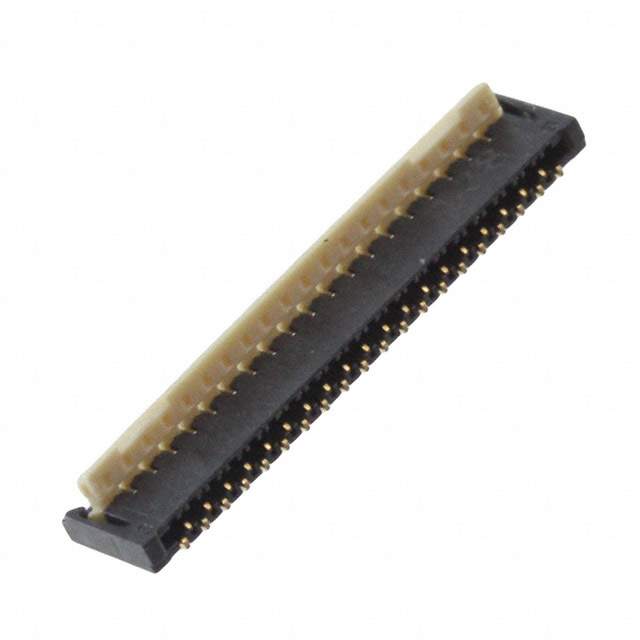

Same model may have multiple batches, images only for reference.

AYF333735A

Name: AYF333735A
Brand: Panasonic
SKU: 971554
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	AYF333735A
Manufacturer	Panasonic
Catalog	FFC, FPC (FlatFlexible) Connectors
Description	CONN FPC 37POS 0.30MM R/A / 37 Position FPC Connector Contacts, Top and Bottom 0.012" (0.30mm) Surface Mount, Right Angle
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>FFC, FPC (Flat Flexible) Connectors
Mfr	Panasonic Electric Works
Series	Y3B
Package	Strip
Product Status	Obsolete
Flat Flex Type	FPC
Mounting Type	Surface Mount, Right Angle
Connector/Contact Type	Contacts, Top and Bottom
Number of Positions	37
Pitch	0.012" (0.30mm)
Termination	Solder
FFC, FCB Thickness	0.20mm
Height Above Board	0.035" (0.88mm)
Locking Feature	Flip Lock, Backlock
Cable End Type	Tapered
Contact Material	Copper Alloy
Contact Finish	Gold
Housing Material	Liquid Crystal Polymer (LCP)
Actuator Material	Liquid Crystal Polymer (LCP)
Voltage Rating	50V
Temperature Range - Operating	-55°C ~ 85°C
Material Flammability Rating	UL94 V-0
Current Rating (Amps)	0.2A per Contact
Mating Cycles	20
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4051
Other Names	255-5652,AYF333735A-ND
Standard Package	500
Win Source Part Number	971554-AYF333735A
Ultra Librarian 3D Model	Ultra Librarian AYF333735A CAD Model

Description

This Y3B series FPC connector is an excellent choice for your electronic projects.

Series: Y3B
Positions: 37
Pitch: 0.012 inches
Contact Material: Copper alloy
Contact Finish: Gold
Mounting: Surface mount
Mounting Type: Right angle
Locking: Flip lock and backlock
Cable End Type: Tapered
Housing and Actuator Material: Liquid crystal polymer (LCP)
Voltage Rating: 50V
Current Rating: 0.2A per contact
Temperature Range: -55°C to 85°C
Flammability Rating: UL94 V-0
Package: Strip
Standard Package: 500
Mating Cycle: 20
ECCN: EAR99 compliant
