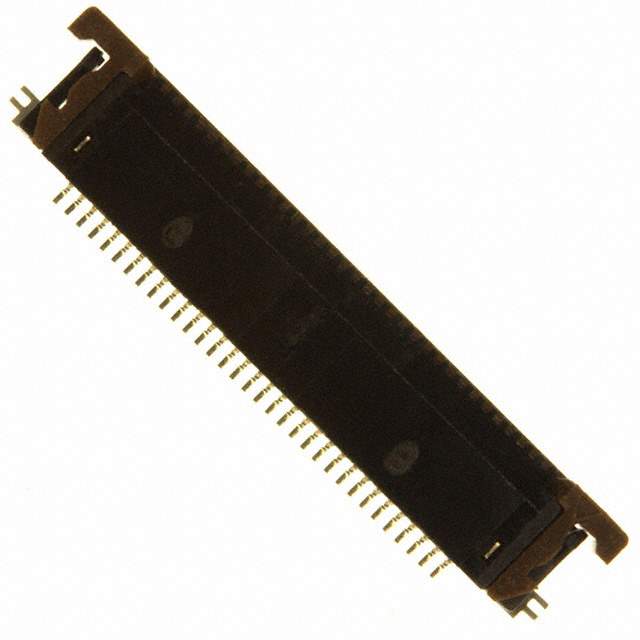

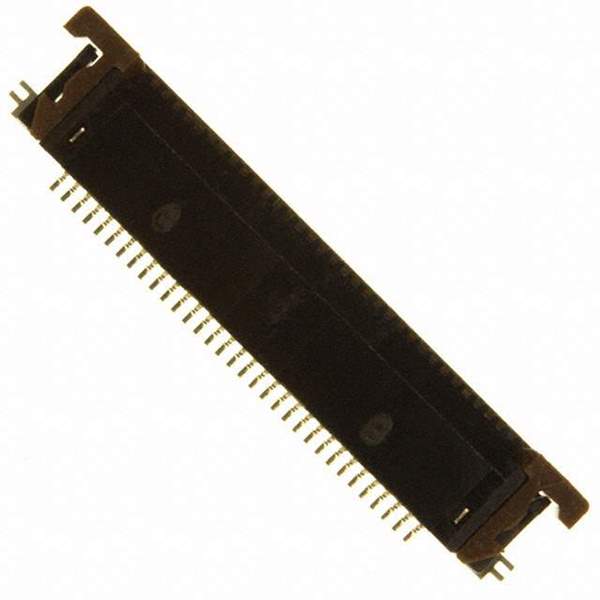

086212033340800A+ Real Image1 086212033340800A+ Real Image2
Same model may have multiple batches, images only for reference.
086212033340800A+ Real Image1 086212033340800A+ Real Image2
086212033340800A+ Real Image1 086212033340800A+ Real Image2
Same model may have multiple batches, images only for reference.

086212033340800A+

Part No 086212033340800A+
Manufacturer AVX Corp/Kyocera Corp
Catalog FFC, FPC (FlatFlexible) Connectors
Description CONN FFC FPC TOP 33POS 0.5MM R/A / 33 Position FFC, FPC Connector Contacts, Top 0.020" (0.50mm) Surface Mount, Right Angle
Datasheet
086212033340800A+ Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>FFC, FPC (Flat Flexible) Connectors>FFC, FPC (Flat Flexible) Connector Assemblies
Mfr AVX Corp/Kyocera Corp
Series 6212, Kyocera
Package Tape & Reel
Flat Flex Type FFC, FPC
Mounting Type Surface Mount, Right Angle
Connector/Contact Type Contacts, Top
Number of Positions 33
Pitch 0.020" (0.50mm)
Termination Solder
FFC, FCB Thickness 0.30mm
Height Above Board 0.079" (2.00mm)
Locking Feature Slide Lock
Cable End Type Tapered
Contact Material Copper Alloy
Contact Finish Tin Copper
Housing Material Plastic
Actuator Material -
Features Solder Retention, Zero Insertion Force (ZIF)
Voltage Rating 50V
Temperature Range - Operating -40°C ~ 85°C
Material Flammability Rating -
Current Rating (Amps) 0.4A
Contact Finish Thickness -
Housing Color -
Actuator Color -
Mating Cycles -
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4051
Standard Package 2,000 pcs
Win Source Part Number 1380414-086212033340800A+
Ultra Librarian 3D Model Ultra Librarian 086212033340800A+ CAD Model

Description

The 1380414-086212033340800A+ is a FFC, FPC (Flat Flexible) Connector Assembly from AVX Corp/Kyocera Corp.

  • Series: 6212
  • Positions: 33
  • Pitch: 0.020" (0.50mm)
  • Features: Solder retention and zero insertion force (ZIF)
  • Mounting: Surface mount, right angle
  • Package: Tape & reel
  • Voltage Rating: 50V
  • Current Rating: 0.4A
  • Height Above Board: 0.079" (2.00mm)
  • FFC, FPC Thickness: 0.30mm
  • Locking Feature: Slide lock
  • Cable End Type: Tapered
  • Contact Material: Copper alloy
  • Housing Material: Plastic
  • Temperature Range: -40°C to 85°C
  • ECCN: EAR99
  • Moisture Sensitivity Level: 1 (Unlimited)
