Same model may have multiple batches, images only for reference.

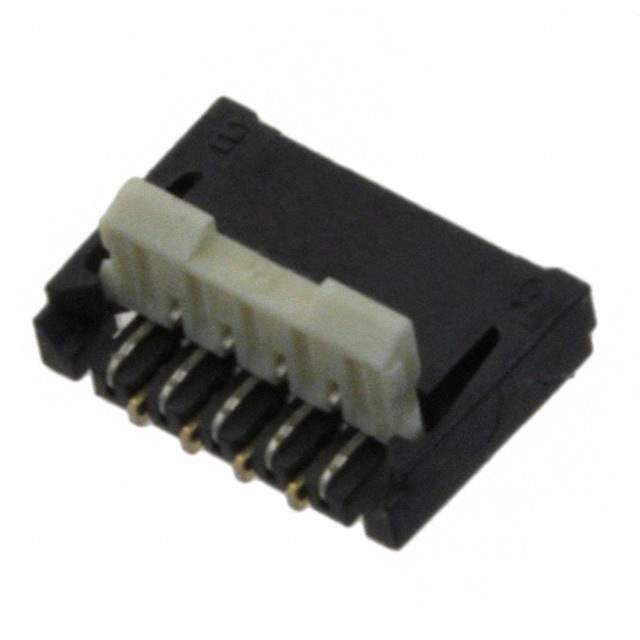

AYF330935 Real Image
Same model may have multiple batches, images only for reference.

AYF330935

Part No AYF330935
Manufacturer Panasonic
Catalog FFC, FPC (FlatFlexible) Connectors
Description CONN FPC 9POS 0.30MM R/A
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Panasonic Electric Works
Packaging Reel - TR
Status Active
Flat Flex Type FPC
Mounting Surface Mount, Right Angle
Connector/Contact Type Contacts, Top and Bottom
Number of Positions 9
Pitch 0.012" (0.30mm)
Termination Solder
FFC, FCB Thickness 0.20mm
Height Above Board 0.036" (0.90mm)
Locking Feature Flip Lock, Backlock
Cable End Type Tapered
Contact Finish Gold
Housing Material Liquid Crystal Polymer (LCP)
Actuator Material Liquid Crystal Polymer (LCP)
Voltage Rating 50V
Temperature Range - Operating -55°C to 85°C
Material Flammability Rating UL94 V-0
Current Rating 0.2A per Contact
Contact Finish Thickness Flash
Mating Cycles 20
Win Source Part Number 1021149-AYF330935
Popularity Medium
Supply and Demand Status Balance
Quantity per package 1k pcs
Ultra Librarian 3D Model Ultra Librarian AYF330935 CAD Model

Description

The AYF330935 is a surface mount FPC connector manufactured by Panasonic Electric Works.

  • Manufacturer: Panasonic Electric Works
  • Mounting Type: Surface Mount
  • Connector Type: FPC
  • Number of Positions: 9
  • Pitch: 0.012" (0.30mm)
  • Voltage Rating: 50V
  • Current Rating: 0.2A per contact
  • Package: Reel - TR
  • Locking Feature: Flip Lock and Backlock
  • Popularity: Medium
  • Supply and Demand: Balance
  • Quantity per Package: 1k pcs
