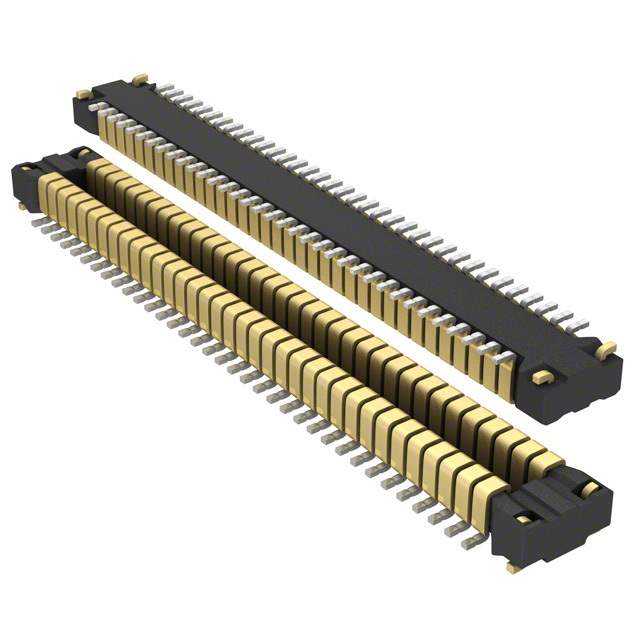

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Panasonic Electric Works
Packaging Reel - TR
Status Active
Connector Type Header, Center Strip Contacts
Number of Positions 70
Pitch 0.016" (0.40mm)
Number of Rows 2
Mounting SMD (SMT)
Features Solder Retention
Contact Finish Gold
Mated Stacking Heights 1mm
Height Above Board 0.033" (0.84mm)
Win Source Part Number 1021145-AXT670124
Popularity Medium
Supply and Demand Status Limited
Quantity per package 3k pcs
Ultra Librarian 3D Model Ultra Librarian AXT670124 CAD Model

Description

The Panasonic Electric Works connector is a header with center strip contacts that has 70 positions and a pitch of 0.016 inches (0.40mm).

  • Features: Solder Retention
  • Contact Finish: Gold
  • Mated Stacking Heights: 1mm
  • Height Above Board: 0.033 inches (0.84mm)
  • Mounting Type: Surface-Mount Technology (SMT)
  • Category: Connectors and Interconnects
  • Product Status: Active
  • Popularity: Medium
  • Supply and Demand Status: Limited
