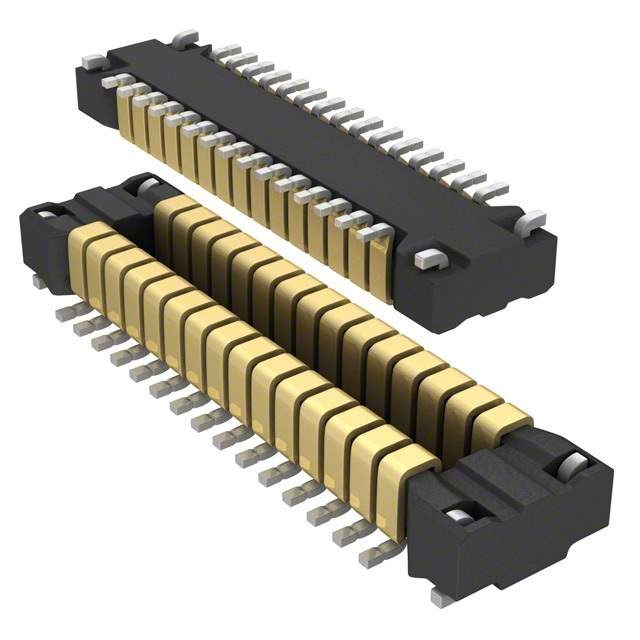

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Panasonic Electric Works
Packaging Reel - TR
Status Active
Connector Type Header, Center Strip Contacts
Number of Positions 30
Pitch 0.016" (0.40mm)
Number of Rows 2
Mounting SMD (SMT)
Features Solder Retention
Contact Finish Gold
Mated Stacking Heights 1mm
Height Above Board 0.033" (0.84mm)
Win Source Part Number 1021136-AXT630124
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Quantity per package 3k pcs
Family Name AXT6
Introduction Date November 12, 2008
ECCN EAR99
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian AXT630124 CAD Model

Description

The Panasonic Electric Works AXT630124 is a high-quality connector that is designed for use in a wide range of applications.

  • Positions: 30
  • Pitch: 0.016" (0.40mm)
  • Features: Solder Retention
  • Type: Header, Center Strip Contacts
  • Rows: Two
  • Contact Finish: Gold
  • Mated Stacking Heights: 1mm
  • Height Above Board: 0.033" (0.84mm)
  • Mounting: Surface Mount
  • Family: AXT6
  • Supply and Demand Status: Limited
  • Package: 3k pcs per package
