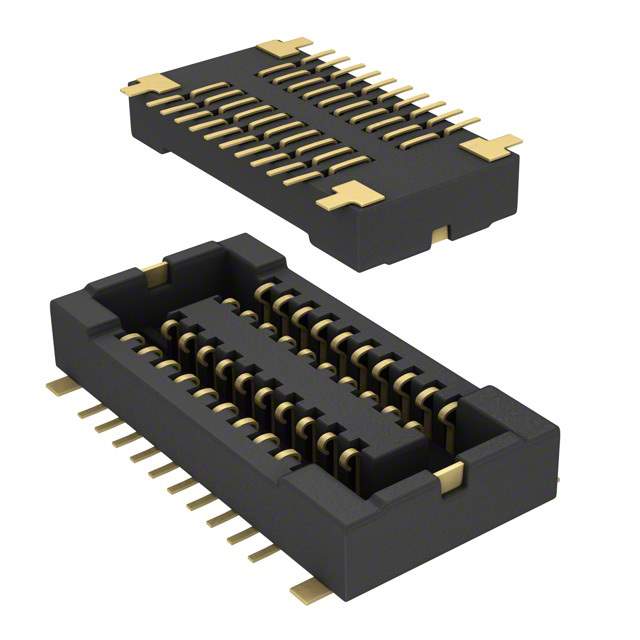

AXT520124 Real Image
Same model may have multiple batches, images only for reference.

AXT520124

Part No AXT520124
Manufacturer Panasonic
Catalog Rectangular Connectors
Description CONN SOCKET F4S .4MM 20POS SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Panasonic Electric Works
Packaging Reel - TR
Status Active
Connector Type Socket, Outer Shroud Contacts
Number of Positions 20
Pitch 0.016" (0.40mm)
Number of Rows 2
Mounting SMD (SMT)
Features Solder Retention
Contact Finish Gold
Mated Stacking Heights 1mm
Height Above Board 0.038" (0.97mm)
Win Source Part Number 1021116-AXT520124
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Sufficient
Quantity per package 3k pcs
Ultra Librarian 3D Model Ultra Librarian AXT520124 CAD Model

Description

The Panasonic Electric Works AXT520124 is a socket connector with outer shroud contacts.

  • Package: Reel
  • Positions: 20
  • Pitch: 0.016" (0.40mm)
  • Solder Retention: Yes
  • Contact Finish: Gold
  • Mated Stacking Heights: 1mm
  • Height Above Board: 0.038" (0.97mm)
  • Mounting: Surface Mount Technology (SMT)
  • Rows: Two
  • Category: Connectors, Interconnects
  • Status: Active
  • Quantity Per Package: 3k pcs
