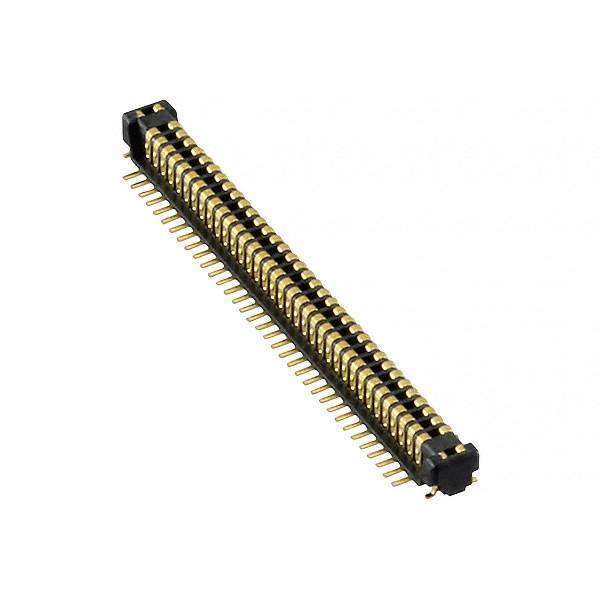

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Panasonic Electric Works
Packaging Reel - TR
Status Active
Connector Type Header, Center Strip Contacts
Number of Positions 70
Pitch 0.016" (0.40mm)
Number of Rows 2
Mounting SMD (SMT)
Features Solder Retention
Contact Finish Gold
Mated Stacking Heights 1.5mm, 2.5mm
Height Above Board 0.049" (1.25mm)
Win Source Part Number 1021110-AXT470124
Popularity Medium
Supply and Demand Status Balance
Quantity per package 3k pcs
Ultra Librarian 3D Model Ultra Librarian AXT470124 CAD Model

Description

The Panasonic Electric Works AXT470124 is a header connector with center strip contacts.

  • Manufacturer: Panasonic Electric Works
  • Connector Type: Header
  • Contacts: Center Strip
  • Positions: 70
  • Pitch: 0.016" (0.40mm)
  • Solder Retention: Yes
  • Mounting Technology: SMD (SMT)
  • Contact Finish: Gold
  • Height Above Board: 0.049" (1.25mm)
  • Mated Stacking Heights: 1.5mm, 2.5mm
