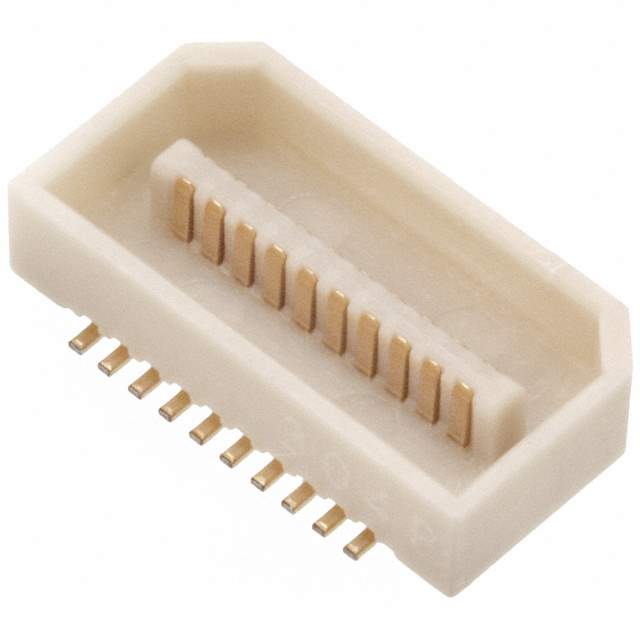

AXN420330S Real Image
Same model may have multiple batches, images only for reference.

AXN420330S

Part No AXN420330S
Manufacturer Panasonic
Catalog Rectangular Connectors
Description CONN HDR 20POS SMD GOLD / 20 Position Connector Header, Outer Shroud Contacts Surface Mount Gold
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors>Arrays, Edge Type, Mezzanine (Board to Board)
Manufacturer Panasonic Electric Works
Packaging Tube
Product Status Obsolete
Connector Type Header, Outer Shroud Contacts
Number of Positions 20
Pitch 0.031" (0.80mm)
Number of Rows 2
Mounting Surface Mount
Features Board Guide
Contact Finish Gold
Mated Stacking Heights 3mm, 3.5mm, 6mm
Height Above Board 0.107" (2.72mm)
Base Product Number AXN420
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number 255-4048-5,AXN420330S-ND
Standard Package 50
Win Source Part Number 1332383-AXN420330S
Ultra Librarian 3D Model Ultra Librarian AXN420330S CAD Model

Description

This connector is manufactured by Panasonic Electric Works and has a Win Source Part Number of 1332383-AXN420330S.

  • Type: Rectangular connector
  • Positions: 20
  • Pitch: 0.031" (0.80mm)
  • Features: Board guide
  • Connector Type: Header with outer shroud contacts
  • Mounting: Surface mount
  • Height Above Board: 0.107" (2.72mm)
  • Fake Product Threat: High (83%)
  • Moisture Sensitivity Level (MSL): 1 (unlimited)
  • Product Status: Obsolete
