Same model may have multiple batches, images only for reference.

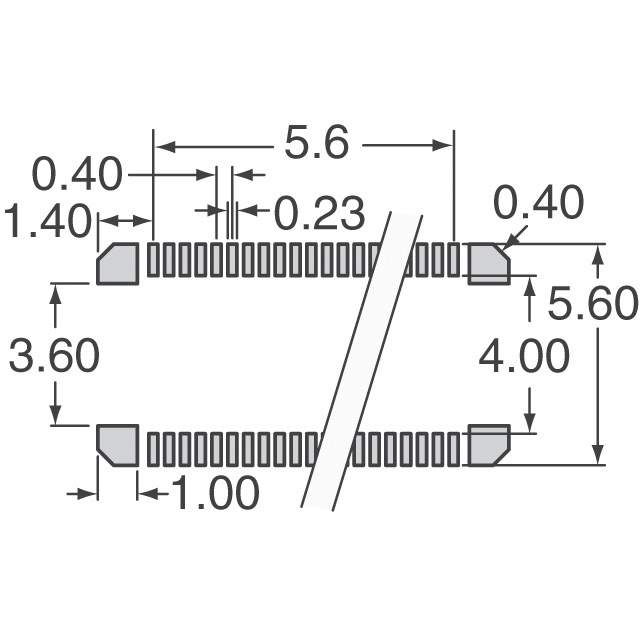

AXK7L30227G Real Image
Same model may have multiple batches, images only for reference.

AXK7L30227G

Part No AXK7L30227G
Manufacturer Panasonic
Catalog Rectangular Connectors
Description CONN SOCKET F4 .4MM 30POS SMD
Datasheet
AXK7L30227G Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Panasonic Electric Works
Packaging Reel - TR
Status Obsolete(EOL)
Connector Type Socket, Center Strip Contacts
Number of Positions 30
Pitch 0.016" (0.40mm)
Number of Rows 2
Mounting SMD (SMT)
Features Solder Retention
Contact Finish Gold
Mated Stacking Heights 0.9mm
Height Above Board 0.034" (0.86mm)
Win Source Part Number 1021034-AXK7L30227G
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian AXK7L30227G CAD Model

Description

The AXK7L30227G is a connector that is designed to provide high-quality performance in various applications.

  • Manufacturer: Panasonic Electric Works
  • Category: Connectors and Interconnects
  • Popularity: Medium
  • Supply and Demand Status: Balanced
  • Win Source Part Number: 1021034-AXK7L30227G
