AXK7L12223G
Same model may have multiple batches, images only for reference.

AXK7L12223G

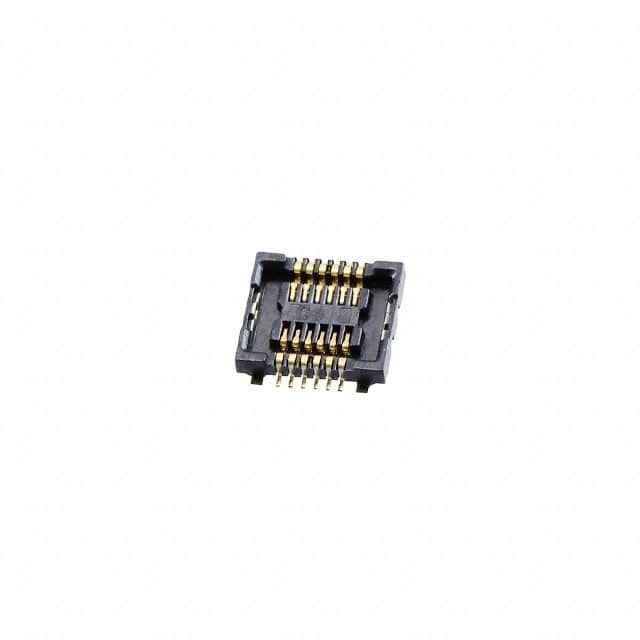

Part No AXK7L12223G
Manufacturer Panasonic
Catalog Rectangular Connectors
Description CONN SOCKET 12POS SMD GOLD
Datasheet
AXK7L12223G Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr Panasonic
Series F4
Package Tape & Reel (TR)Cut Tape (CT)
Product Status Obsolete
Connector Type Socket, Center Strip Contacts
Number of Positions 12
Pitch 0.016" (0.40mm)
Number of Rows 2
Mounting Type Surface Mount
Features Solder Retention
Contact Finish Gold
Mated Stacking Heights 0.9mm
Height Above Board 0.034" (0.86mm)
Base Product Number AXK7L12
Standard Package 1,000 pcs
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 862782-AXK7L12223G
Ultra Librarian 3D Model Ultra Librarian AXK7L12223G CAD Model

Description

The F4 Rectangular Connector Array is a high-quality electronic component designed for board-to-board connections from Panasonic.

  • Category: Connectors, Interconnects - Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
  • Series: F4
  • Positions: 12
  • Pitch: 0.016" (0.40mm)
  • Features: Solder retention
  • Connector Type: Socket, center strip contacts
  • Rows: 2
  • Contact Finish: Gold
  • Package: Tape & reel or cut tape
  • Standard Package: 1,000 pieces
  • Mated Stacking Heights: 0.9mm
  • Height Above Board: 0.034" (0.86mm)
  • Win Source Part Number: 862782-AXK7L12223G
