AXK6S20547YG
Same model may have multiple batches, images only for reference.

AXK6S20547YG

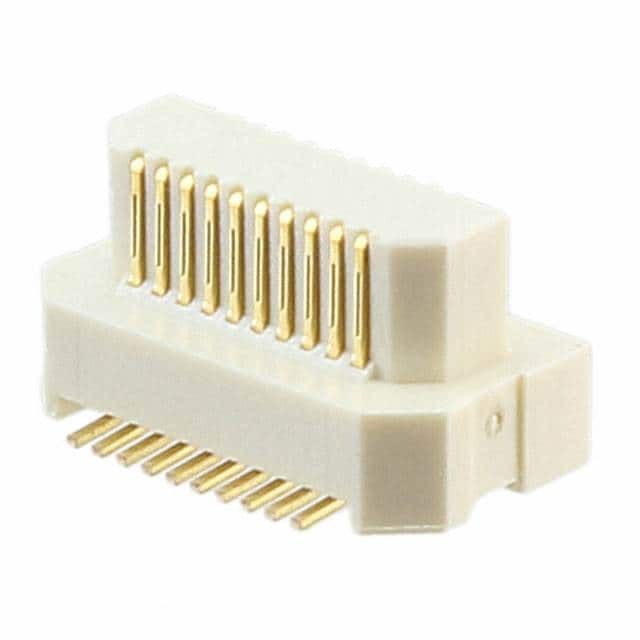

Part No AXK6S20547YG
Manufacturer Panasonic
Catalog Rectangular Connectors
Description CONN HDR 20POS SMD GOLD / 20 Position Connector Header, Outer Shroud Contacts Surface Mount Gold
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr Panasonic
Series P5KS
Package Tape & Reel
Product Status Active
Connector Type Header, Outer Shroud Contacts
Number of Positions 20
Pitch 0.020" (0.50mm)
Number of Rows 2
Mounting Type Surface Mount
Contact Finish Gold
Mated Stacking Heights 5mm, 5.5mm, 8mm
Height Above Board 0.169" (4.30mm)
Base Product Number AXK6S20547
Standard Package 2,000 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 849230-AXK6S20547YG
Ultra Librarian 3D Model Ultra Librarian AXK6S20547YG CAD Model

Description

The Panasonic AXK6S20547YG is a rectangular connector array from the P5KS series. Panasonic manufactures the AXK6S20547YG.

  • Series: P5KS
  • Connector Type: Header
  • Contacts: Outer Shroud
  • Positions: 20
  • Pitch: 0.020" (0.50mm)
  • Mounting Type: Surface Mount
  • Height Above Board: 0.169" (4.30mm)
  • Packaging: Tape & Reel
  • Package Quantity: 2,000 pcs
  • Application: Mezzanine (Board to Board)
