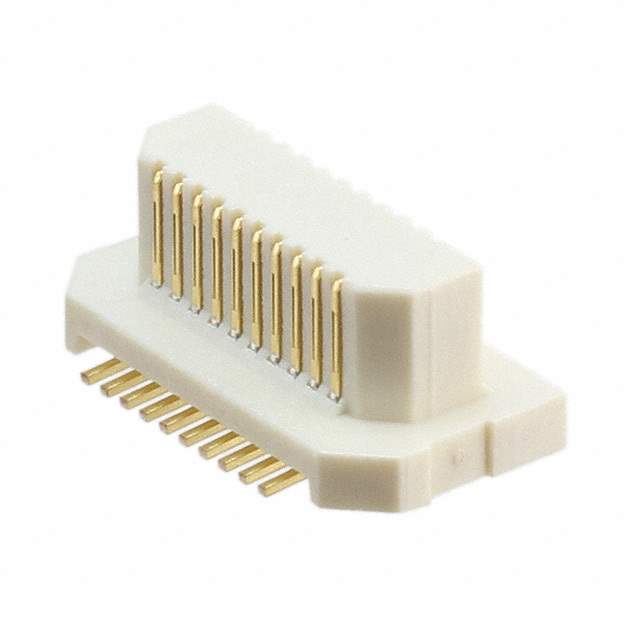

AXK6S20447YG Real Image
Same model may have multiple batches, images only for reference.

AXK6S20447YG

Part No AXK6S20447YG
Manufacturer Panasonic
Catalog Circular Connectors - Housings
Description CONN HDR 20POS SMD GOLD / 20 Position Connector Header, Outer Shroud Contacts Surface Mount Gold
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr Panasonic Electric Works
Series P5KS
Package Tape & Reel (TR),Cut Tape (CT)
Connector Type Header, Outer Shroud Contacts
Number of Positions 20
Pitch 0.020" (0.50mm)
Number of Rows 2
Mounting SMD (SMT)
Contact Finish Gold
Mated Stacking Heights 4mm, 4.5mm, 7mm
Height Above Board 0.130" (3.30mm)
Base Product Number AXK6S20447
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Other Names 255-3261-2,255-3261-1,AXK6S20447YG-ND
Standard Package 1,500
Win Source Part Number 1186214-AXK6S20447YG
Ultra Librarian 3D Model Ultra Librarian AXK6S20447YG CAD Model

Description

The Panasonic Electric Works AXK6S20447YG is a rectangular connector array from Panasonic Electric Works.

  • Type: Rectangular Connector Array
  • Series: P5KS
  • Positions: 20
  • Pitch: 0.020 inches (0.50mm)
  • Contact Finish: Gold
  • Mounting: Tape and Reel
  • Height Above Board: 0.130 inches (3.30mm)
  • Mated Stacking Height: 4mm, 4.5mm, and 7mm
  • Suitable for: Use in connectors and interconnects applications where a rectangular connector array is required.
