Same model may have multiple batches, images only for reference.

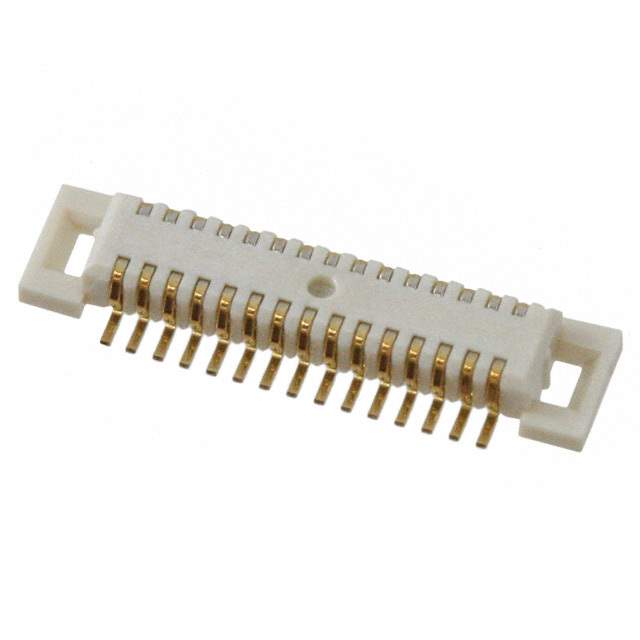

AXK6F60347YG Real Image
Same model may have multiple batches, images only for reference.

AXK6F60347YG

Part No AXK6F60347YG
Manufacturer Panasonic
Catalog Rectangular Connectors
Description CONN HEADER BRD/BRD .5MM 60POS
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Panasonic Electric Works
Packaging Reel - TR
Status Active
Connector Type Header, Center Strip Contacts
Number of Positions 60
Pitch 0.020" (0.50mm)
Number of Rows 2
Mounting SMD (SMT)
Contact Finish Gold
Mated Stacking Heights 1.5mm, 2mm
Height Above Board 0.049" (1.25mm)
Win Source Part Number 1020992-AXK6F60347YG
Popularity Medium
Supply and Demand Status Balance
Quantity per package 2k pcs
Ultra Librarian 3D Model Ultra Librarian AXK6F60347YG CAD Model

Description

Panasonic Electric Works AXK6F60347YG is a high-quality connector designed for electronic applications.

  • Positions: 60
  • Pitch: 0.020 inches (0.50mm)
  • Connector Type: Header, Center Strip Contacts
  • Rows: 2
  • Contact Finish: Gold
  • Mated Stacking Heights: 1.5mm and 2mm
  • Height Above Board: 0.049 inches (1.25mm)
  • Mounting Technology: SMD (SMT)
  • Package: Reel of 2k pcs.
