Same model may have multiple batches, images only for reference.

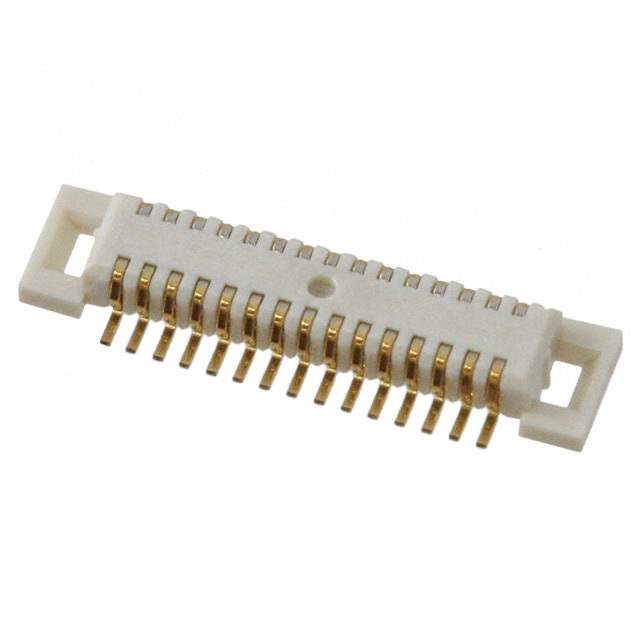

AXK6F32347YG Real Image
Same model may have multiple batches, images only for reference.

AXK6F32347YG

Part No AXK6F32347YG
Manufacturer Panasonic
Catalog Circular Connectors - Housings
Description CONN HDR 32POS SMD GOLD / 32 Position Connector Header, Center Strip Contacts Surface Mount Gold
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr Panasonic Electric Works
Series P5KF
Package Tape & Reel (TR)
Product Status Obsolete
Connector Type Header, Center Strip Contacts
Number of Positions 32
Pitch 0.020" (0.50mm)
Number of Rows 2
Mounting SMD (SMT)
Contact Finish Gold
Mated Stacking Heights 1.5mm, 2mm
Height Above Board 0.049" (1.25mm)
Base Product Number AXK6F32347
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Standard Package 2,000
Win Source Part Number 1190791-AXK6F32347YG
Ultra Librarian 3D Model Ultra Librarian AXK6F32347YG CAD Model

Description

This rectangular connector from Panasonic Electric Works is a great choice for a wide range of applications.

  • Positions: 32
  • Pitch: 0.020 inches
  • Contact Finish: Gold
  • Packaging: Tape and Reel
  • Voltage Rating: Up to 50VAC
  • Temperature Range: -25 to 85 degrees Celsius
  • Series: P5KF
