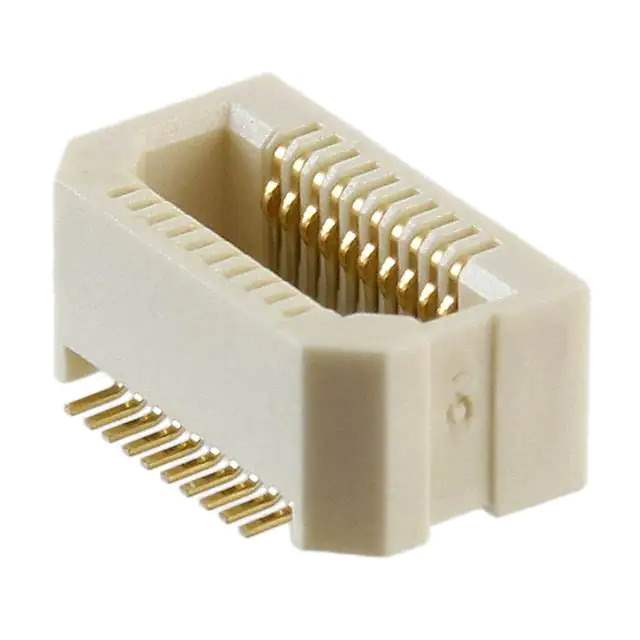

AXK5S20247YG Real Image
Same model may have multiple batches, images only for reference.

AXK5S20247YG

Part No AXK5S20247YG
Manufacturer Panasonic
Catalog Rectangular Connectors
Description CONN SOCKET 20POS SMD GOLD / 20 Position Connector Socket, Center Strip Contacts Surface Mount Gold
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr Panasonic
Series P5KS
Package Tape & Reel
Product Status Active
Connector Type Socket, Center Strip Contacts
Number of Positions 20
Pitch 0.020" (0.50mm)
Number of Rows 2
Mounting Type Surface Mount
Contact Finish Gold
Mated Stacking Heights 4.5mm, 5.5mm, 6.5mm
Height Above Board 0.140" (3.55mm)
Base Product Number AXK5S20247
Standard Package 1,500 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 567367-AXK5S20247YG
Ultra Librarian 3D Model Ultra Librarian AXK5S20247YG CAD Model

Description

The AXK5S20247YG is a rectangular connector array manufactured by Panasonic.

  • Series: P5KS
  • Positions: 20
  • Pitch: 0.020" (0.50mm)
  • Contact Type: Socket and Center Strip
  • Contact Finish: Gold
  • Mounting Type: Surface Mount
  • Height Above Board: 0.140" (3.55mm)
  • Packaging: Tape and Reel
  • Standard Package: 1,500 pcs
  • Mated Stacking Heights: 4.5mm, 5.5mm, and 6.5mm
  • Status: Active
