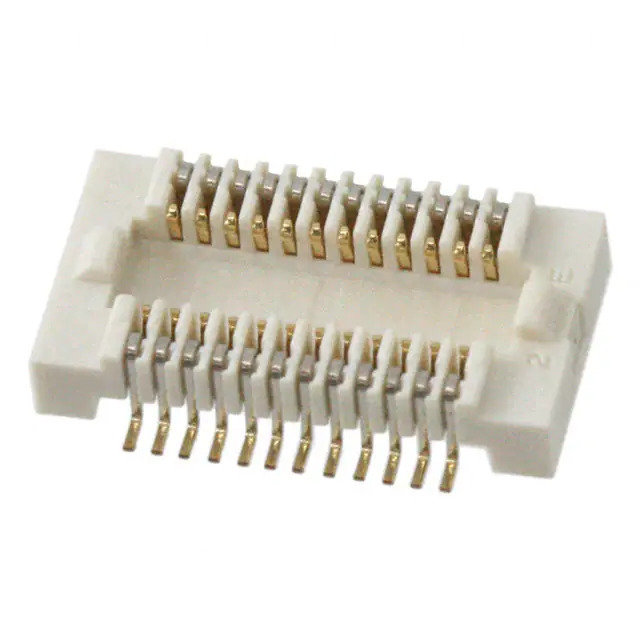

AXK5F70547YG

Name: AXK5F70547YG
Brand: Panasonic
SKU: 1364413
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	AXK5F70547YG
Manufacturer	Panasonic
Catalog	Rectangular Connectors
Description	CONN SOCKET 70POS SMD GOLD / 70 Position Connector Socket, Outer Shroud Contacts Surface Mount Gold
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr	Panasonic Electric Works
Series	P5KF
Package	Tape & Reel
Product Status	Active
Connector Type	Socket, Outer Shroud Contacts
Number of Positions	70
Pitch	0.020" (0.50mm)
Number of Rows	2
Mounting Type	Surface Mount
Features	-
Contact Finish	Gold
Contact Finish Thickness	-
Mated Stacking Heights	2mm, 2.5mm
Height Above Board	0.073" (1.85mm)
Base Product Number	AXK5F70547
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1364413-AXK5F70547YG
Ultra Librarian 3D Model	Ultra Librarian AXK5F70547YG CAD Model

Alternative Products

Description

The 1364413-AXK5F70547YG is a rectangular connector array from Panasonic Electric Works. It is a part of the P5KF series and has a socket connector type with 70 positions and 2 rows.

Series: P5KF
Connector Type: Socket
Positions: 70
Rows: 2
Mated Stacking Heights: 2mm and 2.5mm
Pitch: 0.020" (0.50mm)
Mounting Type: Surface Mount
Height Above Board: 0.073" (1.85mm)
Status: Active
