Same model may have multiple batches, images only for reference.

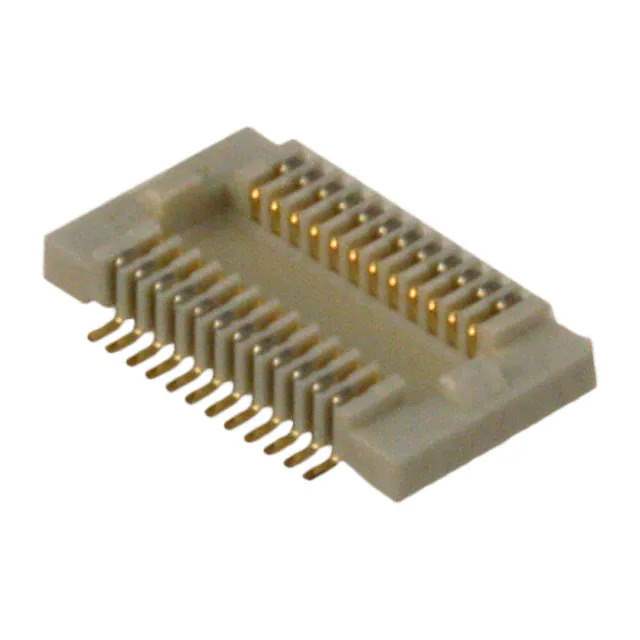

AXK5F34347YG Real Image
Same model may have multiple batches, images only for reference.

AXK5F34347YG

Part No AXK5F34347YG
Manufacturer Panasonic
Catalog Rectangular Connectors
Description CONN SOCKET 34POS SMD GOLD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr Panasonic
Series P5KF
Package Tape & Reel
Product Status Active
Connector Type Socket, Outer Shroud Contacts
Number of Positions 34
Pitch 0.020" (0.50mm)
Number of Rows 2
Mounting Type Surface Mount
Contact Finish Gold
Mated Stacking Heights 1.5mm
Height Above Board 0.053" (1.35mm)
Base Product Number AXK5F34347
Standard Package 2,000 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 862763-AXK5F34347YG
Ultra Librarian 3D Model Ultra Librarian AXK5F34347YG CAD Model

Description

The 862763-AXK5F34347YG is a rectangular connector array from Panasonic.

  • Series: P5KF
  • Positions: 34
  • Pitch: 0.020" (0.50mm)
  • Connector Type: Socket
  • Contacts: Outer Shroud
  • Contact Finish: Gold-plated
  • Package: Tape and Reel
  • Standard Package Quantity: 2,000 pcs
  • Mated Stacking Height: 1.5mm
  • Height Above Board: 0.053" (1.35mm)
  • Mounting: Surface Mount
