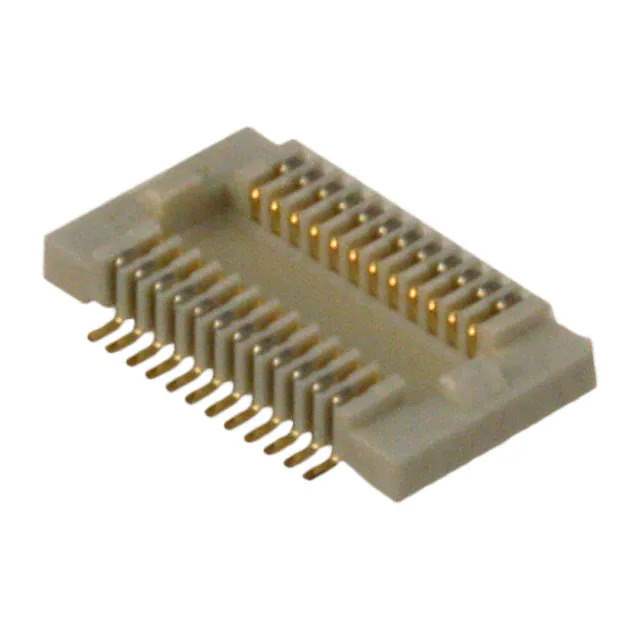

AXK5F24347YG

Name: AXK5F24347YG
Brand: Panasonic
SKU: 567364
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	AXK5F24347YG
Manufacturer	Panasonic
Catalog	Rectangular Connectors
Description	CONN SOCKET 24POS SMD GOLD / 24 Position Connector Socket, Outer Shroud Contacts Surface Mount Gold
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr	Panasonic
Series	P5KF
Package	Tape & Reel
Product Status	Active
Connector Type	Socket, Outer Shroud Contacts
Number of Positions	24
Pitch	0.020" (0.50mm)
Number of Rows	2
Mounting Type	Surface Mount
Contact Finish	Gold
Mated Stacking Heights	1.5mm
Height Above Board	0.053" (1.35mm)
Base Product Number	AXK5F24347
Standard Package	1,000 pcs
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	567364-AXK5F24347YG
Ultra Librarian 3D Model	Ultra Librarian AXK5F24347YG CAD Model

Description

The Panasonic 567364-AXK5F24347YG is a rectangular connector array designed for board-to-board connections from Panasonic.

Positions: 24
Pitch: 0.020 inches (0.50mm)
Suitable for: compact electronic devices
Connector Type: socket
Contacts: outer shroud
Contact Finish: gold
Height Above Board: 0.053 inches (1.35mm)
Mated Stacking Height: 1.5mm
Ideal for: surface mount applications
Package: tape and reel
Standard Package Quantity: 1,000 pieces
Compliance: ECCN EAR99
MSL Level: 1 (unlimited moisture sensitivity)
