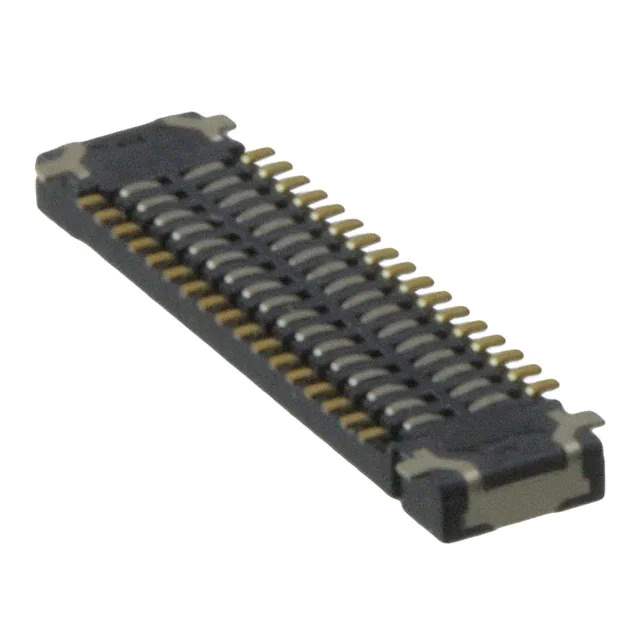

AXE536127 Real Image
Same model may have multiple batches, images only for reference.

AXE536127

Part No AXE536127
Manufacturer Panasonic
Catalog Rectangular Connectors
Description CONN SOCKET 36POS SMD GOLD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr Panasonic
Series A4S
Package Tape & Reel
Product Status Obsolete
Connector Type Socket, Center Strip Contacts
Number of Positions 36
Pitch 0.016" (0.40mm)
Number of Rows 2
Mounting Type Surface Mount
Features Solder Retention
Contact Finish Gold
Mated Stacking Heights 0.8mm, 1mm
Height Above Board 0.030" (0.75mm)
Base Product Number AXE536
Standard Package 5,000 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 862732-AXE536127
Ultra Librarian 3D Model Ultra Librarian AXE536127 CAD Model

Description

The A4S series is a rectangular connector array designed for edge type and mezzanine (board to board) applications. With 36 positions and a pitch of 0.016" (0.40mm), this connector offers reliable and secure connections.

  • Series: A4S series
  • Applications: Edge type and mezzanine (board to board)
  • Positions: 36
  • Pitch: 0.016" (0.40mm)
  • Features: Solder retention
  • Contact Type: Socket with center strip contacts
  • Mounting: Surface mountable
  • Height Above the Board: 0.030" (0.75mm)
  • Manufacturer: Panasonic
  • Product Line: AXE536
  • Package: Tape & reel
  • Standard Package: 5,000 pcs
  • Status: Obsolete
