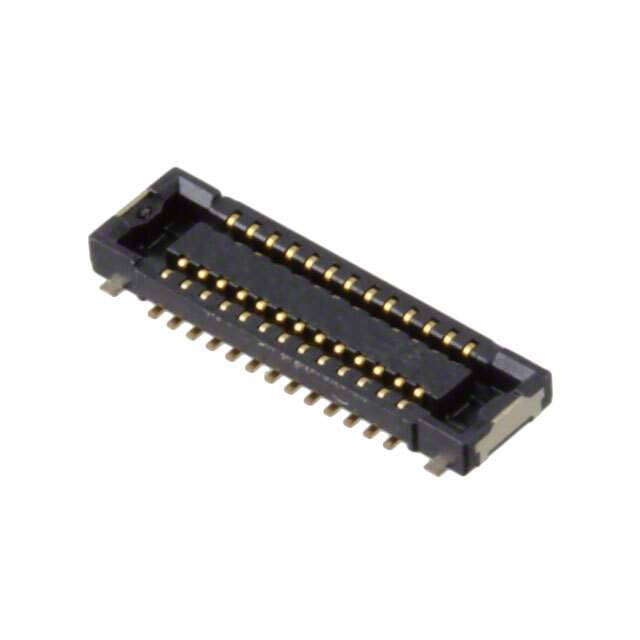

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Panasonic Electric Works
Packaging Reel - TR
Status Active
Connector Type Socket, Center Strip Contacts
Number of Positions 26
Pitch 0.016" (0.40mm)
Number of Rows 2
Mounting SMD (SMT)
Features Solder Retention
Contact Finish Gold
Mated Stacking Heights 0.8mm, 1mm
Height Above Board 0.030" (0.75mm)
Win Source Part Number 1020920-AXE526127
Popularity Medium
Supply and Demand Status Balance
Quantity per package 5k pcs
Ultra Librarian 3D Model Ultra Librarian AXE526127 CAD Model

Description

The AXE526127 connector from Panasonic Electric Works is a socket, center strip contact type connector with a pitch of 0.016" (0.40mm).

  • Contact Finish: Gold
  • Packaging: Reel-TR
  • Positions: 26
  • Rows: Two
  • Height Above Board: 0.030" (0.75mm)
  • Mounting Type: Surface-Mount Technology (SMT)
  • Supply and Demand Status: Balanced
