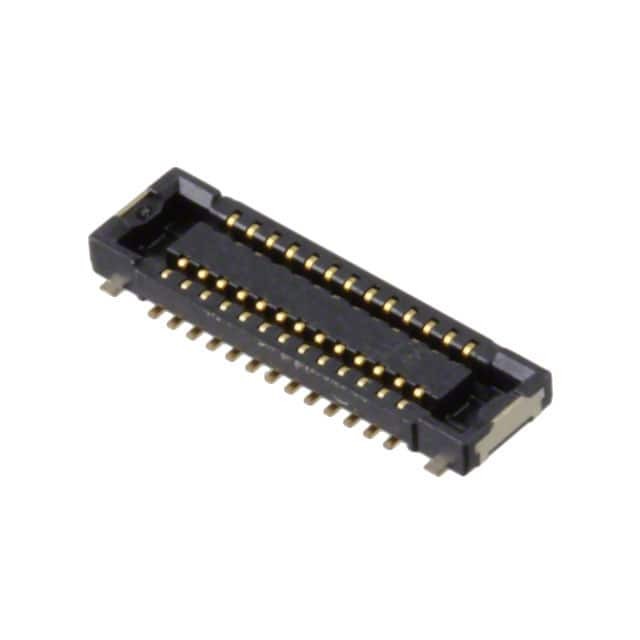

AXE526124
Same model may have multiple batches, images only for reference.

AXE526124

Part No AXE526124
Manufacturer Panasonic
Catalog Rectangular Connectors
Description CONN SOCKET 26POS SMD GOLD / 26 Position Connector Socket, Center Strip Contacts Surface Mount Gold
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr Panasonic
Series A4S
Package Tape & Reel (TR)Cut Tape (CT)
Product Status Obsolete
Connector Type Socket, Center Strip Contacts
Number of Positions 26
Pitch 0.016" (0.40mm)
Number of Rows 2
Mounting Type Surface Mount
Features Solder Retention
Contact Finish Gold
Mated Stacking Heights 0.8mm, 1mm
Height Above Board 0.030" (0.75mm)
Base Product Number AXE526
Standard Package 5,000 pcs
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 862731-AXE526124
Ultra Librarian 3D Model Ultra Librarian AXE526124 CAD Model

Description

The Panasonic AXE526124 is a rectangular connector array with an edge type and mezzanine (board to board) configuration. It is part of the A4S series and has 26 positions.

  • Type: Rectangular connector array
  • Configuration: Edge type and mezzanine (board to board)
  • Series: A4S
  • Positions: 26
  • Pitch: 0.016" (0.40mm)
  • Features: Solder retention
  • Contact Type: Socket type with center strip contacts
  • Mounting: Surface mount
  • Stacking Heights: 0.8mm and 1mm
  • Height Above the Board: 0.030" (0.75mm)
  • Package: Tape and reel
  • Standard Package: 5,000 pieces
  • Status: Obsolete product
