Same model may have multiple batches, images only for reference.

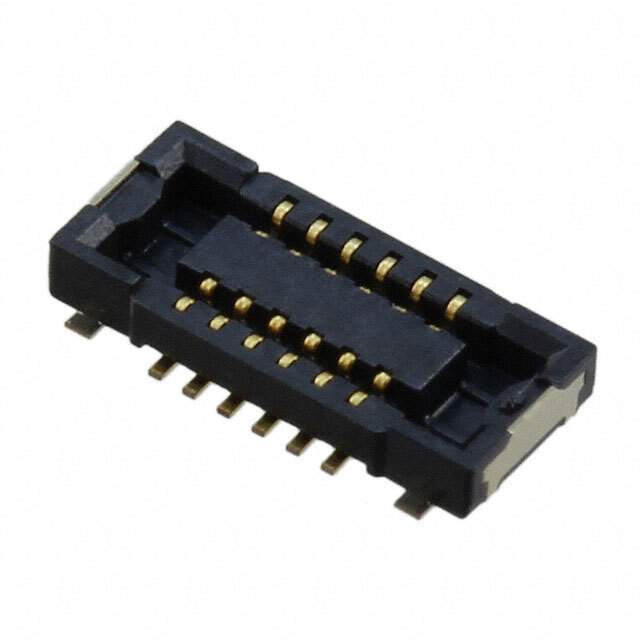

AXE512124 Real Image
Same model may have multiple batches, images only for reference.

AXE512124

Part No AXE512124
Manufacturer Panasonic
Catalog Rectangular Connectors
Description CONN SOCKET .4MM 12 POS SMD
Datasheet
AXE512124 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Panasonic Electric Works
Packaging Reel - TR
Status Obsolete(EOL)
Connector Type Socket, Center Strip Contacts
Number of Positions 12
Pitch 0.016" (0.40mm)
Number of Rows 2
Mounting SMD (SMT)
Features Solder Retention
Contact Finish Gold
Mated Stacking Heights 0.8mm, 1mm
Height Above Board 0.030" (0.75mm)
Win Source Part Number 1020913-AXE512124
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian AXE512124 CAD Model

Description

The AXE512124 is a connector component from Panasonic Electric Works.

  • Design: Provide reliable and high-performance operation for various electronic devices
  • Feature: Solder retention
  • Ensures: A secure connection between the components
  • Ideal for: Applications that require high-performance connector components
