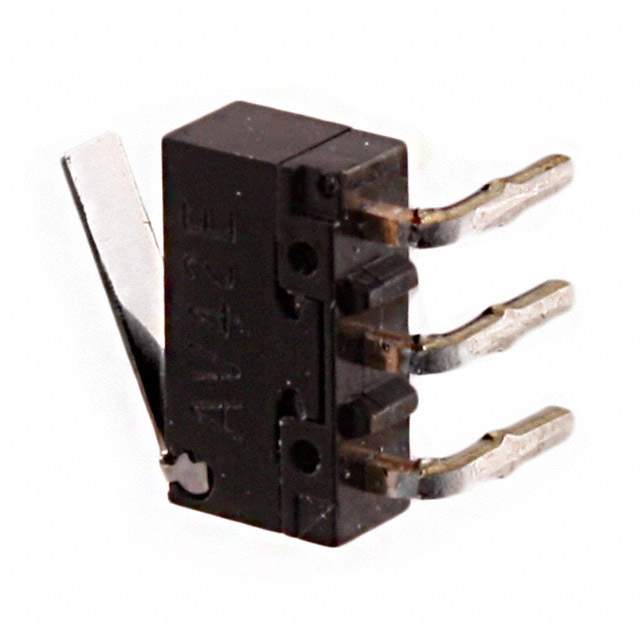

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Switches>Limit Switches
Mfr Panasonic Electric Works
Series AV4
Package Bulk
Circuit SPDT
Switch Function On-Mom
Current Rating (Amps) 500mA (DC)
Voltage Rating - DC 30 V
Actuator Type Lever, Straight
Mounting Type Through Hole, Right Angle
Termination Style PC Pin
Features Actuator Mounted Right Side
Operating Force 25gf
Pretravel 0.094" (2.4mm)
Differential Travel 0.027" (0.7mm)
Overtravel 0.015" (0.4mm)
Temperature Range - Operating -25°C ~ 80°C
Operating Position 0.228" (5.8mm)
Electrical Life 20,000 Cycles
Mechanical Life 300,000 Cycles
Base Product Number AV452
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.50.9055
Other Names 255-3404,AV4524-ND
Standard Package 100
Win Source Part Number 1137780-AV4524
Ultra Librarian 3D Model Ultra Librarian AV4524 CAD Model

Description

The AV4524 is a limit switch that belongs to the AV4 series of switches. The device is manufactured by Panasonic Electric Works.

  • Win Source Part Number: 1137780-AV4524
  • Termination Style: PC Pin
  • Actuator Mounting: Right Side
  • Voltage Rating: 30 V
  • Standard Package: 100
  • Circuit: SPDT
  • Switch Function: On-Mom
  • Actuator Type: Lever, Straight
  • Electrical Life: 20,000 Cycles
  • Operating Force: 25gf
  • Mechanical Life: 300,000 Cycles
  • Pretravel: 0.094” (2.4mm)
  • Differential Travel: 0.027” (0.7mm)
  • Overtravel: 0.015” (0.4mm)
  • Operating Position: 0.228” (5.8mm)
  • Operating Temperature: -25°C ~ 80°C
  • ECCN: EAR99
  • HTSUS Code: 8536.50.9055
