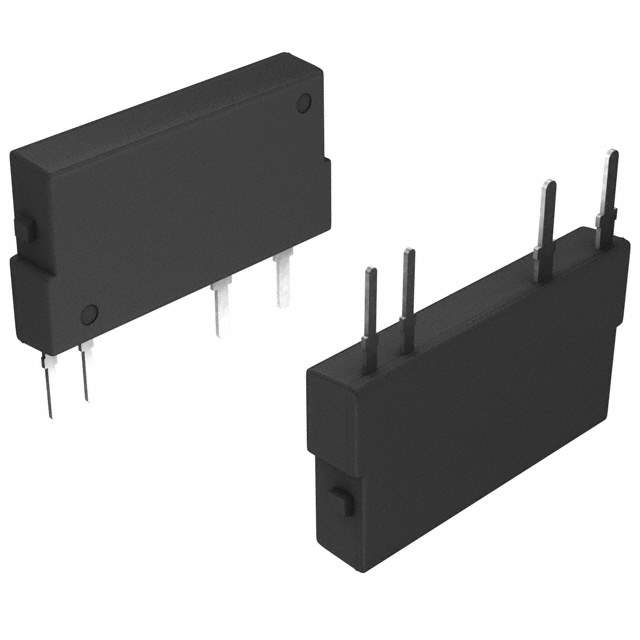

AQZ404 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Relays
Manufacturer Panasonic Electric Works
Packaging Tube/Rail
Status Active
Circuit SPST-NC (1 Form B)
Output Type AC, DC
Max On Resistance 4 Ohm
Load Current 500mA
Voltage - Input 1.16VDC
Voltage - Load 0 to 400 V
Mounting Through Hole
Termination Style PC Pin
Case / Package 4-SIL
Relay Type Relay
Win Source Part Number 199276-AQZ404
Popularity Medium
Supply and Demand Status Limited
Application Field Used in Industrial, Robotics, Communications & Networking, Automotive
Quantity per package 25
Ultra Librarian 3D Model Ultra Librarian AQZ404 CAD Model

Description

Features and Benefits of AQZ404

  • Superior Performance: Provides superior performance, perfect for high-demand applications.
  • Compact and Lightweight: Its lightweight design ensures it can be easily integrated without adding significant weight.
  • Minimal Maintenance: Engineered for minimal maintenance, reducing downtime and operational costs.

Applications of AQZ404

  • Security Systems
  • Renewable Energy Systems
  • Lighting Control Systems
  • HVAC Systems

The AQZ404 is the go-to choice for engineers seeking a high-performance, low-maintenance electronic component solution.
