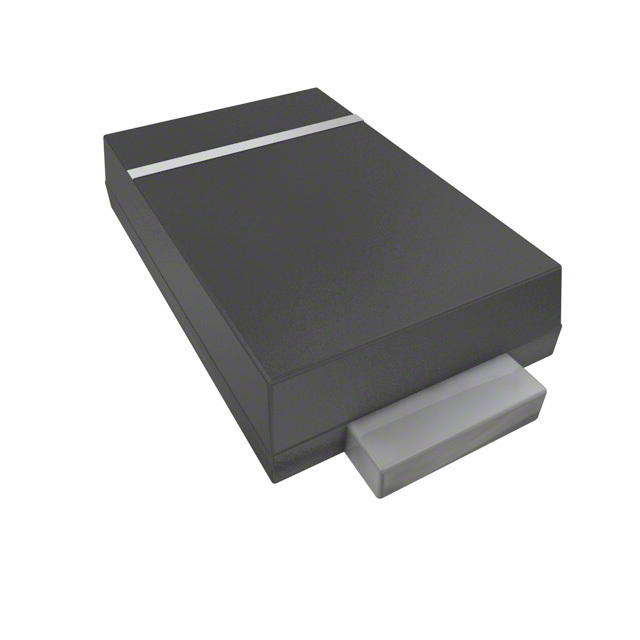

The B140AF-13 is a high-performance Schottky barrier rectifier designed and manufactured by Diodes Incorporated, a leading company in the semiconductor market. This component is engineered to offer efficient low voltage drop and high current capability, making it an ideal choice for a wide range of applications.
Key Features
- Low Forward Voltage Drop: The B140AF-13 boasts a low forward voltage drop, which enhances power efficiency and reduces thermal stress on the system.
- High Current Capability: With its high current rating, this rectifier can handle significant current loads, making it suitable for high-power applications.
- Guard Ring Die Construction: The guard ring design provides transient protection and ensures a stable performance over a variety of conditions.
- Lead-Free Finish: The B140AF-13 comes with a lead-free finish, making it compliant with current RoHS regulations and environmentally friendly.
Applications
The versatile nature of the B140AF-13 makes it suitable for a variety of applications, including:
- Power Supply Units (PSUs)
- DC-DC Converters
- Automotive Applications
- Free-Wheeling Diodes
- Reverse Battery Protection
Specifications
Parameter
Value
Maximum Repetitive Reverse Voltage (V<sub>RRM)
40V
Average Rectified Output Current (I<sub>o)
1A
Forward Voltage Drop (V<sub>F)
0.5V @ 1A
Operating Temperature Range
-55°C to +125°C
Quality and Reliability
Diodes Incorporated is known for its commitment to quality, and the B140AF-13 is no exception. It is produced with the highest industry standards and goes through rigorous testing to ensure reliability and performance under various conditions.
Ordering Information
For purchasing and further information regarding the B140AF-13, please contact Diodes Incorporated or an authorized distributor. Ensure to refer to the exact part number to avoid any discrepancies in your order.
