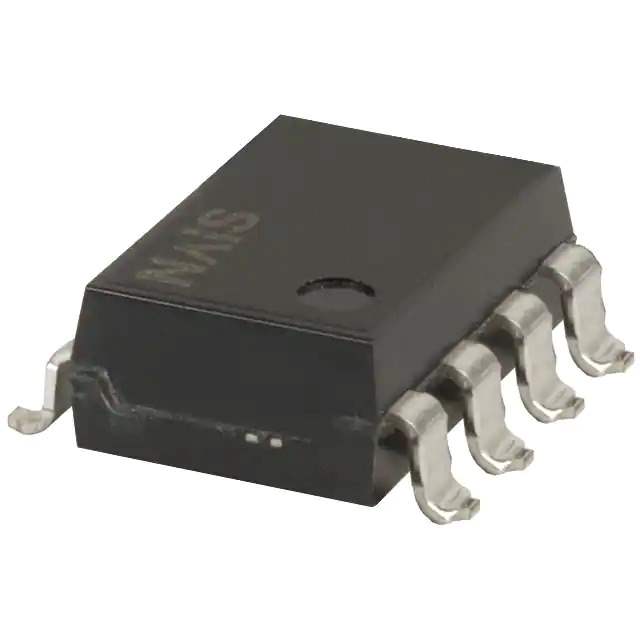

AQW225NAZ Real Image
Same model may have multiple batches, images only for reference.

AQW225NAZ

Part No AQW225NAZ
Manufacturer Panasonic
Catalog Solid State Relays
Description SSR RELAY SPST-NO 120MA 0-80V / Solid State SPST-NO (1 Form A) x 2 8-SMD (0.300", 7.62mm)
Datasheet
AQW225NAZ Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays - Solid State Relays
Mfr Panasonic
Series PhotoMOS™ AQW
Package Tape & Reel
Product Status Obsolete
Mounting Type Surface Mount
Circuit SPST-NO (1 Form A) x 2
Output Type AC, DC (RF)
Voltage - Input 1.14VDC
Voltage - Load 0 V ~ 80 V
Load Current 120 mA
On-State Resistance (Max) 10 Ohms
Termination Style Gull Wing
Package / Case 8-SMD (0.300", 7.62mm)
Supplier Device Package 8-SMD
Base Product Number AQW22
Standard Package 1,000 pcs
Moisture Sensitivity Level (MSL) Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.49.0055
Win Source Part Number 861738-AQW225NAZ
Ultra Librarian 3D Model Ultra Librarian AQW225NAZ CAD Model

Description

The PhotoMOS™ AQW225NAZ is a solid-state relay designed for various electronic applications.

  • Termination Style: Gull Wing
  • Package: 8-SMD
  • Voltage Input: 1.14VDC
  • Output Type: AC and DC (RF)
  • Circuit Configuration: SPST-NO (1 Form A) x 2
  • On-State Resistance: Maximum 10 Ohms
  • Load Current Capacity: 120 mA
  • Voltage Load Range: 0 V to 80 V
  • Mounting: Surface-Mounted
  • Manufacturer: Panasonic
